14 URD | 14 Inch Round Motorized Damper | EWC Controls
14 URD | 14 Inch Round Motorized Damper | EWC Controls
EWC Controls | 14 URD
The photo is for representation purposes only and may not be a photo of product being purchased.

14 URD | 14 Inch Round Motorized Damper | EWC Controls

SKU: 14 URDBrand: EWC ControlsCondition: New

Details for 14 URD



PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED

EWC DAMPERS ARE BUILT TO ORDER AND CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION

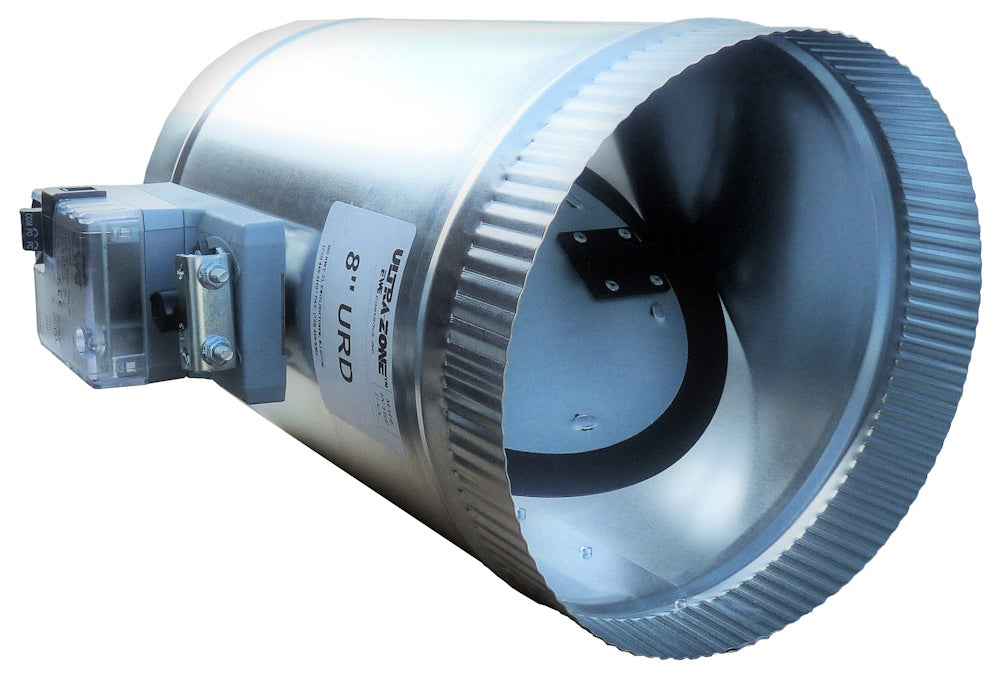

14 Inch Round Motorized Damper



PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED

EWC DAMPERS ARE BUILT TO ORDER AND CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION

14 Inch Round Motorized Damper

Brand: EWC ControlsSKU: 14 URD
List Price
$298.00
$151.98
Availability: This product is currently available
This item ships FREE
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

EWC Controls 14 URD Documents

Details for 14 URD


PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED

EWC DAMPERS ARE BUILT TO ORDER AND CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION

14 Inch Round Motorized Damper

Description

The URD series of round motorized dampers are a double layered blade design with an integrated Poron™ sealing gasket. The superior design insures long life and zero maintenance. URD dampers are easy to install, easy to wire up, and come with a 5 year warranty. The URD damper is constructed of heavy 24 gauge galvanized steel with factory rolled stiffening beads. The nylon bearings and ThermoTuff™ drive shafts insure smooth, quiet operation and provide a thermal barrier to the motor. The URD is designed to operate reliably at static pressures up to 1.5” w.c. The UL Listed MA-ND5 Actuator is a 24vac 3 wire power open / power close type rated at 18 “ lbs. of torque. It includes an integrated wiring terminal block, and a NEMA1 rated housing. The MA-ND5 motor features bright Green and Red LED's which correspond to the OPEN and CLOSED position of the blade. The motor also includes adjustable End-Stops for Min/Max blade position, that allows for field balancing of the full or minimum CFM flow, into a particular zone or area. The Position LED’s will illuminate regardless of the End Stop positions.
