128010 | Retrofit Damper | 10" Round Retrofit Motorized Damper | Braeburn

Brand: BraeburnSKU: 128010

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 128010

Jump to: Overview & Specifications Reviews

Overview Details for 128010

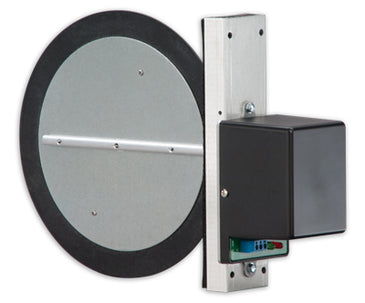

Retrofit Damper | 10" Round Retrofit Motorized Damper

Braeburn PO/PC Round Zone Dampers are used to control the volume of air that will be distributed to a zoned area. With three wire installation and a high torque motor, Braeburn zone dampers provide the quality and durability you have come to expect from the value leader in indoor controls.

Quick and Easy Installation Simply cut a one inch slot along the length of the duct. Slide the damper in and secure with screws. Resiliant gasket helps provide a positive seal.

Product Features and Benefits

Power Open, Power Close Operation
Heavy Duty Galvanized Construction
Dual LEDs for Positive Indication of Open to Close
Slip-In Design for Quick Installation

Architectural Specifications

The Round Retrofit Power Open / Power Close Damper shall be Braeburn Series 1280XX where XX indicates damper diameter (04, 05, 06, 07, 08 and 10 inches). The damper shall be powered directly from zone panel 24 VAC damper terminals. A shared common terminal along with power open and power closed terminals shall be provided for damper control. In the event of a power failure, no readjustment shall be required. The drive motor shall require 4 VA of power at 24 VAC.
