105137 | 1-1/2 HP, PD40T Circulator Pump | Bell & Gossett

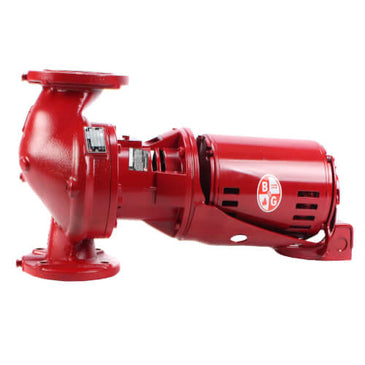

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 105137
Documents and manuals
Bell & Gossett 105137 Documents
Overview
Details for 105137
1-1/2 HP, PD40T Circulator Pump
Bell Gossett 105137
Booster pump designed for hydronic heating and cooling in closed loop systems. The three-part design (motor, bearing assembly, volute) results in compact construction and ease of repair in the field. All Bell & Gossett boosters are equipped with the incomparable B&G manufactured motor for quiet and efficient operation.
Features
- B&G Motor featuring sleeve bearing, oil lubricated with replaceable resilient motor mounts.
- Long bronze sleeve bearings maintain exact shaft alignment and provide for constant circulation of oil over bearing surfaces.
- Noise dampening coupler.
- Precision ground pump shaft is oversized to provide large bearing surfaces. Hardened integral thrust collar minimizes end-thrust to ensure long seal and bearing life.
- The B&G mechanical seal is designed to withstand the wide range of water temperatures, pressures, additives and dissolved solids common in hydronic systems.
- Centrifugal impeller prevents accumulation of air at seal faces to assure long life. Close impeller/body tolerances minimize water slippage and maximize efficiency.
Specifications
Item Number | 105137 |
Brand | Bell & Gossett |
Amperage | 4.8/2.4 |
Application | Heating |
Connection Size | 3" |
Connection Type | Flanged x Flanged |
Family | CIRCULATOR PUMPS |
Flow Range (GPM) | 0-152 |
Head Range (ft.) | 15-35 |
Hertz | 60 |
Horse Power | 1-1/2 |
HP | 1.5 |
Material | Cast Iron |
Max Flow (GPM) | 152 |
Max Head (Ft) | 35 |
Max Pressure (PSI) | 125 |
Max Temp (F) | 225°F |
Min Head (Ft) | 15 |
Phase | 3 |
Pump Type | Cast Iron Pumps |
RPM | 1725 |
Series | PD Series Cast Iron Booster Pumps |
SubType | Three Piece Cast Iron Booster Pumps |
Type | Pump |
Voltage | 208/230/460v |
