TFX24 | Damper Actuator | 22 in-lb | Spg Rtn | 24V | On/Off | Belimo

Configurable Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC/DC 24 V, On/Off

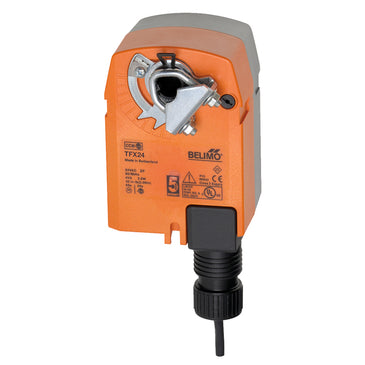

Belimo | TFX24
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFX24
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo TFX24 Documents

Datasheet Installation Instructions More Info

Overview

Details for TFX24

Damper Actuator | 22 in-lb | Spg Rtn | 24V | On/Off

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact, or a manual switch. The actuator is mounted directly to a damper shaft from 1/4" up to 1/2" in diameter by means of its universal clamp, 1/2" shaft centered at delivery. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
On/Off
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
2 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
75 s
Safety Function
YES
Torque
22 in-lb [2.5 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo ZG-LMSA-1/2-5 Shaft extension for 1/2" diameter shafts (5" L). | Blackhawk Supply
ZG-LMSA-1/2-5 | Shaft extension for 1/2" diameter shafts (5" L). | Belimo
$51.75 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
Belimo KG6 Ball joint for 5/16" diameter rod | zinc plated. | Blackhawk Supply
KG6 | Ball joint for 5/16" diameter rod | zinc plated. | Belimo
$20.55 each
