Brand: BelimoSKU: TFRX24-MFT-S

Web Price:

$376.20

Availability: This product is currently available to purchase

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

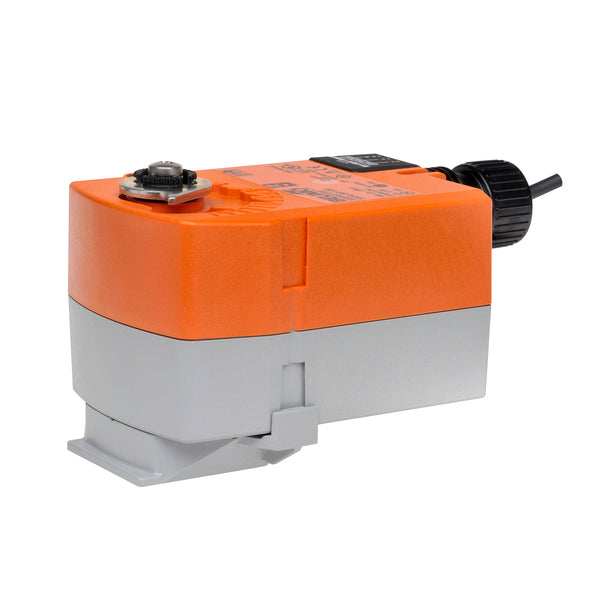

TFRX24-MFT-S | Valve Actuator | Spg Rtn | 24V | MFT | SW | Belimo

Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, MFT/programmable

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFRX24-MFT-S

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo TFRX24-MFT-S Documents

Datasheet More Info

Overview

Details for TFRX24-MFT-S

Valve Actuator | Spg Rtn | 24V | MFT | SW

Specifications

Valve specifications
Angle of Rotation: 95
Close-off Pressure: 200 kPa
Controllable Flow Range: 75B0
Cv: 0.29
End Fitting: Internal thread
Fluid: High temperature hot water/low pressure steam up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]
Actuator specifications
Actuator Type: Spring return
Auxiliary Switches: 1 x SPDT
Control Type: MFT/Programmable
Degree of Protection: IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Power Consumption (Holding): 1 W
Power Consumption (Running): 2.5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 150 s / 90B0
Voltage AC/DC: AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo

Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply

ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo

Belimo ZG-LMSA-1/2-5 Shaft extension for 1/2" diameter shafts (5" L). | Blackhawk Supply

ZG-LMSA-1/2-5 | Shaft extension for 1/2" diameter shafts (5" L). | Belimo

Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply

KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo

Belimo KG6 Ball joint for 5/16" diameter rod | zinc plated. | Blackhawk Supply

KG6 | Ball joint for 5/16" diameter rod | zinc plated. | Belimo

Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Blackhawk Supply

SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo
