TFRX120-S | Valve Actuator | Spg Rtn | 120V | On/Off | SW | Belimo

Configurable Valve Actuator, Spring return, AC 100...240 V, On/Off, 1 x SPDT

Belimo | TFRX120-S

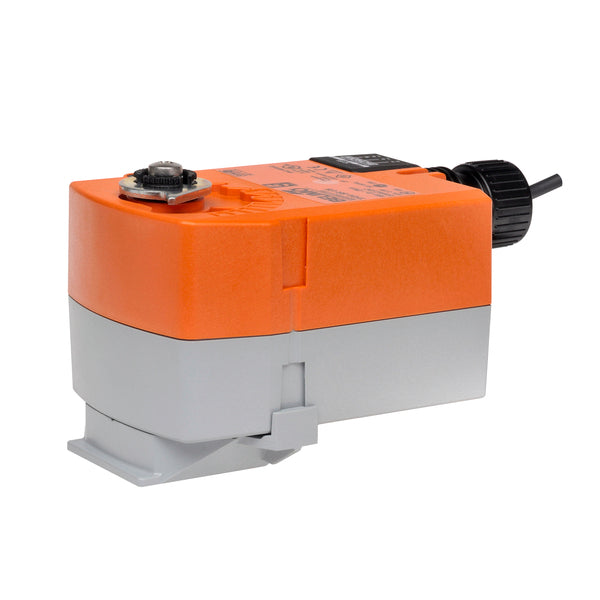

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFRX120-S
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo TFRX120-S Documents

Datasheet More Info

Overview

Details for TFRX120-S

Valve Actuator | Spg Rtn | 120V | On/Off | SW

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
75B0
Cv
0.3
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Control Type
On/Off
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<75 s
Running Time (Motor)
75 s
Voltage AC/DC
AC 100...240 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo ZG-LMSA-1/2-5 Shaft extension for 1/2" diameter shafts (5" L). | Blackhawk Supply
ZG-LMSA-1/2-5 | Shaft extension for 1/2" diameter shafts (5" L). | Belimo
$51.75 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Blackhawk Supply
SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo
$19.35 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
