Brand: BelimoSKU: NFX24-S

Web Price:

$342.00

Availability: This product is currently available to purchase

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

NFX24-S | Damper Actuator | 90 in-lb | Spg Rtn | 24V | On/Off | Belimo

Configurable Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT

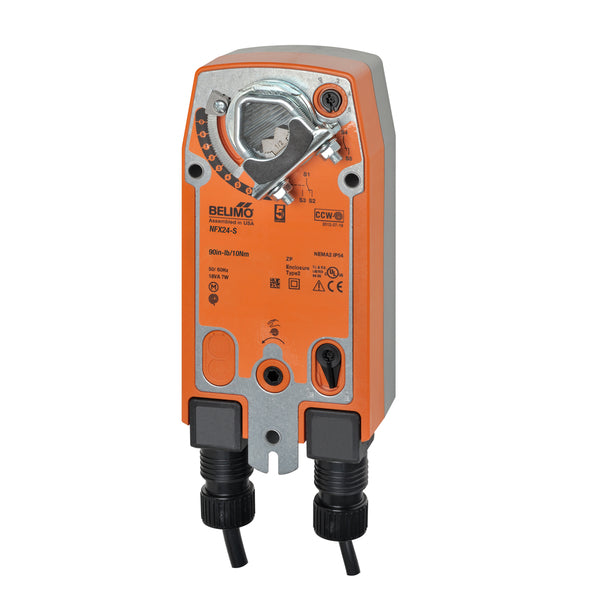

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NFX24-S

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo NFX24-S Documents

Datasheet Installation Instructions More Info

Overview

Details for NFX24-S

Damper Actuator | 90 in-lb | Spg Rtn | 24V | On/Off

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication.

Specifications

Actuator Type: Spring return
Angle of Rotation: 95
Auxiliary Switches: 2 x SPDT
Control Type: On/Off
Degree of Protection: 852
Electrical Connection: cable
Power Consumption (Holding): 2.5 W
Power Consumption (Running): 6 W
Protection category: IP54
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Torque: 90 in-lb [10 Nm]
Voltage AC/DC: AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo

Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply

ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo

Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply

KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo

Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply

KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo

Belimo SH8 Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Blackhawk Supply

SH8 | Push rod for KG6 & KG8 ball joints (36" L | 5/16" diameter). | Belimo

Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply

KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
