LMX24-MFT | Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

Configurable Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

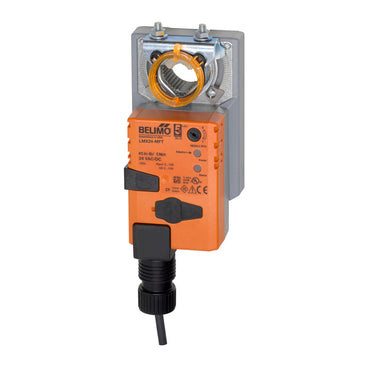

Belimo | LMX24-MFT
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX24-MFT

Documents and manuals

Belimo LMX24-MFT Documents

Overview

Details for LMX24-MFT

Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating

Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating

Application

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter by means of its universal clamp. Shafts up to 3/4” diameter can be accommodated by an accessory clamp.

The default parameters for 2 to 10 VDC applications of the …MFT actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The LMB(X) series provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

The LMB(X)24-MFT… actuators use a brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.

Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.


Specifications

Actuator Type
Non fail-safe
Angle of Rotation
95
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.2 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
30...150 s
Safety Function
NO
Torque
45 in-lb [5 Nm]
Voltage AC/DC
AC/DC 24 V
