LMX24-3-T | Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | Belimo

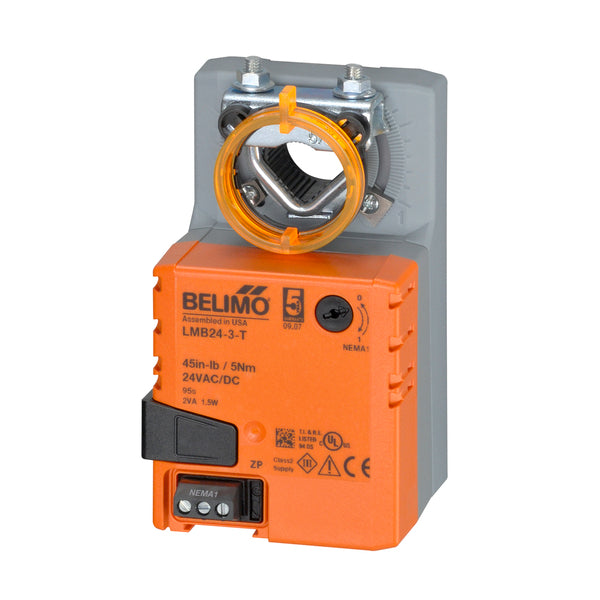

Configurable Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals

Belimo | LMX24-3-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX24-3-T

Documents and manuals

Belimo LMX24-3-T Documents

Overview

Details for LMX24-3-T

Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point

Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point

Application

For On/Off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter by means of its standard universal clamp. Shafts up to 3/4” diameter can be accommodated by an accessory clamp.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The LMB series provides 95° of rotation and a visual indicator which indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be disengaged with manual release on the actuator cover.

The LMB24-3… actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.

The LMB24-3-S version is provided with one built-in auxiliary switch. This SPDT switch is provided for safety interfacing or signaling, for example, for fan start-up. The switching function is adjustable 0 to 95°. The auxiliary switch is double insulated so an electrical ground connection is not necessary.

Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.


Specifications

Actuator Type
Non fail-safe
Angle of Rotation
95
Control Type
Floating/3-point
Degree of Protection
IP20 NEMA 1 UL Enclosure Type 1
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
95 s / 90B0
Running Time range (Motor)
354560 150 s
Safety Function
NO
Torque
45 in-lb [5 Nm]
Voltage AC/DC
AC/DC 24 V
