LM24A-MOD | Damper Actuator | Modulating | communicative | hybrid | AC/DC 24V | 5 Nm | Belimo

Rotary Actuator, 45 in-lb [5 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 150 s, IP54

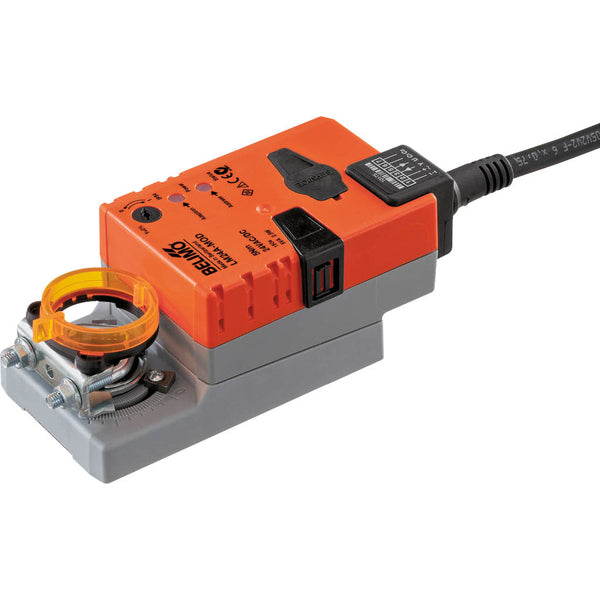

Belimo | LM24A-MOD
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LM24A-MOD
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo LM24A-MOD Documents

Datasheet Installation Instructions More Info

Overview

Details for LM24A-MOD

Damper Actuator | Modulating | communicative | hybrid | AC/DC 24V | 5 Nm

Description

Communicative damper actuator for adjusting dampers in technical building installations

Features

  • Torque motor 5 Nm
  • Nominal voltage AC/DC 24 V
  • Control modulating, communicative, hybrid mode
  • Conversion of sensor signals
  • Communication via BACnet MS/TP, Modbus RTU, Belimo-MP-Bus or conventional control

Specifications

Actuator Type
Non fail-safe
Angle of Rotation
95
Control Type
  • BACnet MS/TP
  • Modbus RTU
  • MP-Bus
  • DC 2...10 V
  • DC 0.5...10 V
  • Hybrid (communicative/analog)
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
With push-button can be locked
Mechanical Interface
Universal shaft clamp 6...20 mm
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
35...150 s
Torque
45 in-lb [5 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo S2A Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
S2A | Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
$93.60 each
Belimo P2800A GR Feedback potentiometer 2800 ohms. | Blackhawk Supply
P2800A GR | Feedback potentiometer 2800 ohms. | Belimo
$103.05 each
Belimo S1A Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
S1A | Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
$62.10 each
Belimo P140A GR Feedback potentiometer 140 ohms | Blackhawk Supply
P140A GR | Feedback potentiometer 140 ohms | Belimo
$103.05 each
Belimo ZG-LMSA Shaft extension for 1/2" diameter shafts (3" L). | Blackhawk Supply
ZG-LMSA | Shaft extension for 1/2" diameter shafts (3" L). | Belimo
$45.00 each
