GMX24-MFT-X1 | Valve Actuator | Non-Spg | 24V | MFT | Belimo

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

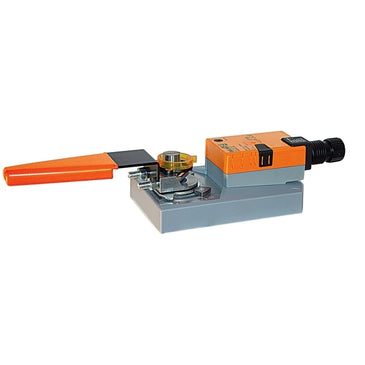

Belimo | GMX24-MFT-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMX24-MFT-X1
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo GMX24-MFT-X1 Documents

Datasheet Installation Instructions More Info

Overview

Details for GMX24-MFT-X1

Valve Actuator | Non-Spg | 24V | MFT

For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation
Cv
84
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
4.5 W
Running Time (Motor)
150 s / 90B0
Torque
40 Nm
Voltage AC/DC
AC/DC 24 V
