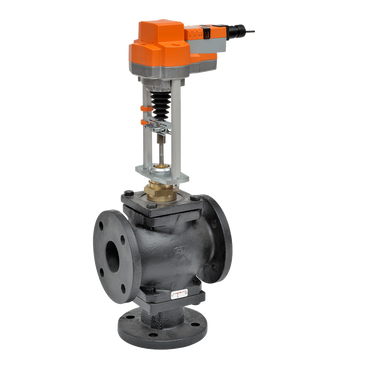

G780S-250+EVX120-3 | Globe Valve | 3" | 3 Way | 91 Cv | w/ Non-Spg | 120V | Floating Point | Belimo
Globe Valve (GV), 3", 3-way, ANSI Class 250, Cv 85 |Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G780S-250+EVX120-3
Documents and manuals
Belimo G780S-250+EVX120-3 Documents
Overview
Details for G780S-250+EVX120-3
Globe Valve | 3" | 3 Way | 91 Cv | w/ Non-Spg | 120V | Floating Point
Specifications
- Valve specifications
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open B b AB
- Cv
- 85
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 2500 N [560 lbf]
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 5 W
- Running Time (Motor)
- 90 s /
- Stroke
- 2" [50 mm]
- Voltage AC/DC
- AC 100...240 V
