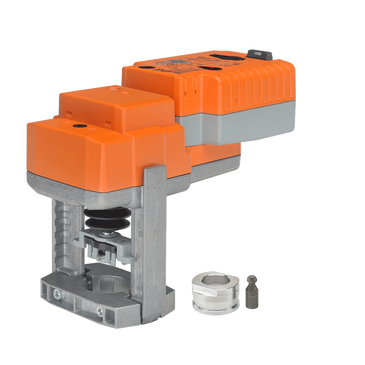

SGVL+SVKX24-MFT | SGVL w/ Electronic FS | 337 lbf | 24V | MFT | Belimo
Retrofit valve linkageFor Schneider Globe Valve with LV and SV Series Actuators|Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
Overview
Details for SGVL+SVKX24-MFT
SGVL w/ Electronic FS | 337 lbf | 24V | MFT
Application
The SGVL retrofit kit is designed to easily attach LV and SV series actuators to select Schneider globe valves. Its casted base and free spinning collar allow the SGVL to be mounted on ½” to 2” two-way or three-way valves in both normally open and normally closed configurations.
Operation
The SGVL linkage with actuator will provide 20 mm of linear travel to accommodate a wide range of valve sizes.
Default/Configuration
The default set up for a SGVL linkage will be factory installed along with a LV or SV series actuator. Included in the kit will be all the necessary hardware to facilitate mounting to the Schneider valve.
Specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Fluid
- Chilled or hot water and steam
- Force
- 1500 N [340 lbf]
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 3 W
- Protection category
- IP54
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s /
- Running Time range (Motor)
- 35...150 s
- Stroke
- 0.95" [24 mm]
- Voltage AC/DC
- AC/DC 24 V
