EFX120 | Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off | Belimo
Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC 100...240 V / DC 100...125 V, On/Off

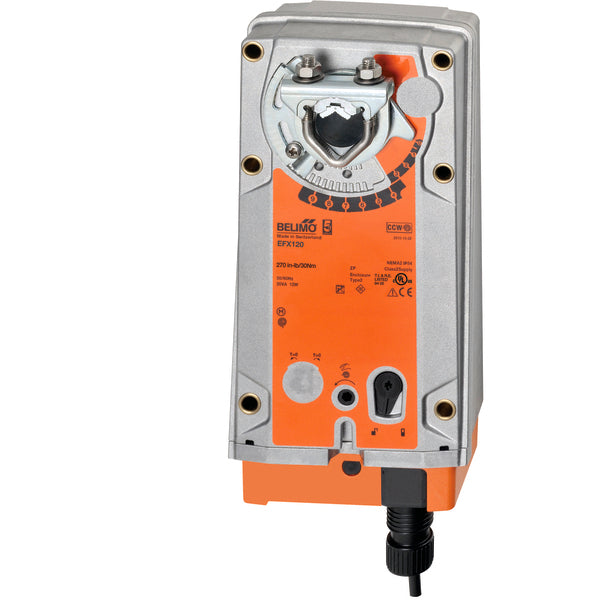

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EFX120
Documents and manuals
Belimo EFX120 Documents
Overview
Details for EFX120
Damper Actuator | 270 in-lb | Spg Rtn | 100 to 240V | On/Off
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two EF's can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4" diameter shaft and parallel wiring.Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Direction of Rotation (Fail-Safe)
- Reversible with cw/ccw mounting
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 4.5 W
- Power Consumption (Running)
- 9.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Safety Function
- YES
- Torque
- 270 in-lb [30 Nm]
- Voltage AC/DC
- AC 100...240 V
