B6500S-290+GRX120-3 | CCV | 5" | 2 Way | 290 Cv | w/ Non-Spg | 100-240V | Floating | Belimo

Characterized Control Valve (CCV), 5", 2-way, ANSI Class 125, Cv 290 |Configurable Valve Actuator, Non fail-safe, AC 100...240 V, On/Off, Floating point

Belimo | B6500S-290+GRX120-3

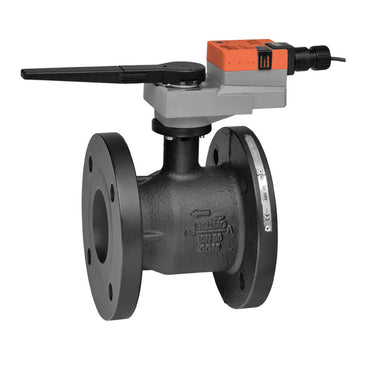

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6500S-290+GRX120-3

Documents and manuals

Belimo B6500S-290+GRX120-3 Documents

Overview

Details for B6500S-290+GRX120-3

CCV | 5" | 2 Way | 290 Cv | w/ Non-Spg | 100-240V | Floating

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
125
Controllable Flow Range
75B0
Cv
290
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
5" [125]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
2 W
Power Consumption (Running)
4 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC 100...240 V
