B6400S-186+GKRX24-MFT | CCV | 4" | 2 Way | 186 Cv | w/ Electronic Fail-Safe | 24V | MFT | Belimo
Characterized Control Valve (CCV), 4", 2-way, ANSI Class 125, Cv 186 |Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

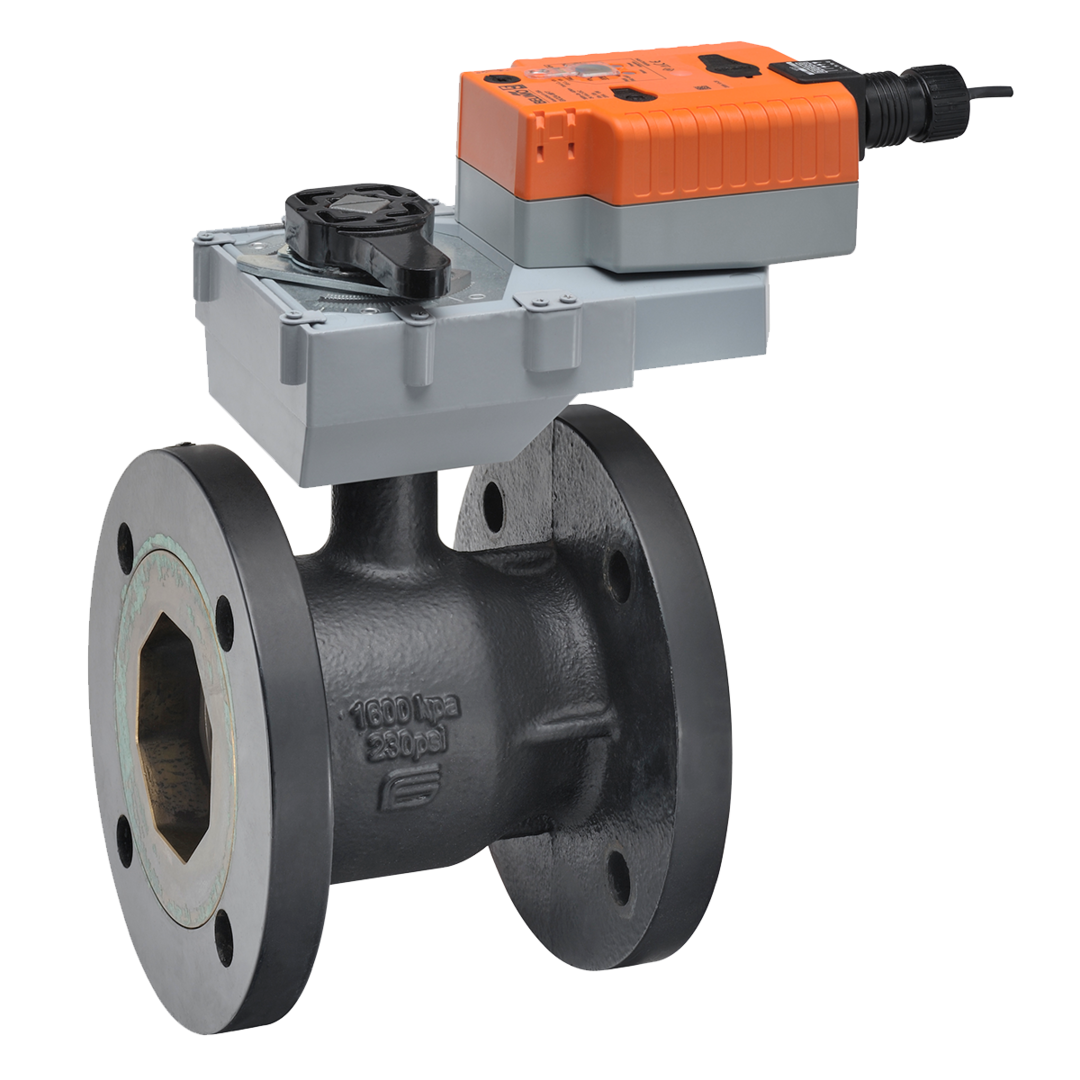

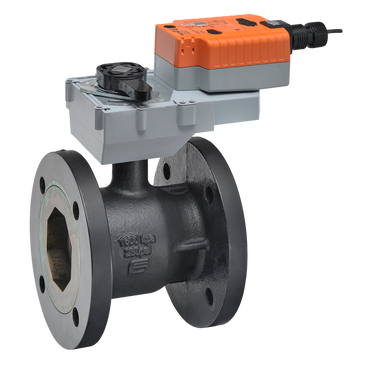

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6400S-186+GKRX24-MFT
Documents and manuals
Belimo B6400S-186+GKRX24-MFT Documents
Overview
Details for B6400S-186+GKRX24-MFT
CCV | 4" | 2 Way | 186 Cv | w/ Electronic Fail-Safe | 24V | MFT
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 125
- Controllable Flow Range
- 75B0
- Cv
- 186
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
