B349+ARX24-3-T N4 | CCV | 2" | 3 Way | 46 Cv | w/ Non-Spg | 24V | Floating | NEMA 4H | Belimo

Characterized Control Valve (CCV), 2", 3-way, Cv 46 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminals

Belimo | B349+ARX24-3-T N4

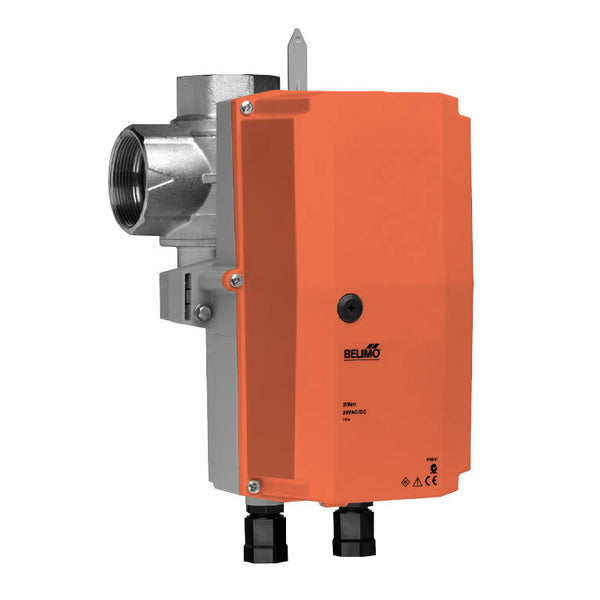

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B349+ARX24-3-T N4

Documents and manuals

Belimo B349+ARX24-3-T N4 Documents

Overview

Details for B349+ARX24-3-T N4

CCV | 2" | 3 Way | 46 Cv | w/ Non-Spg | 24V | Floating | NEMA 4H

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
46
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Under cover
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
