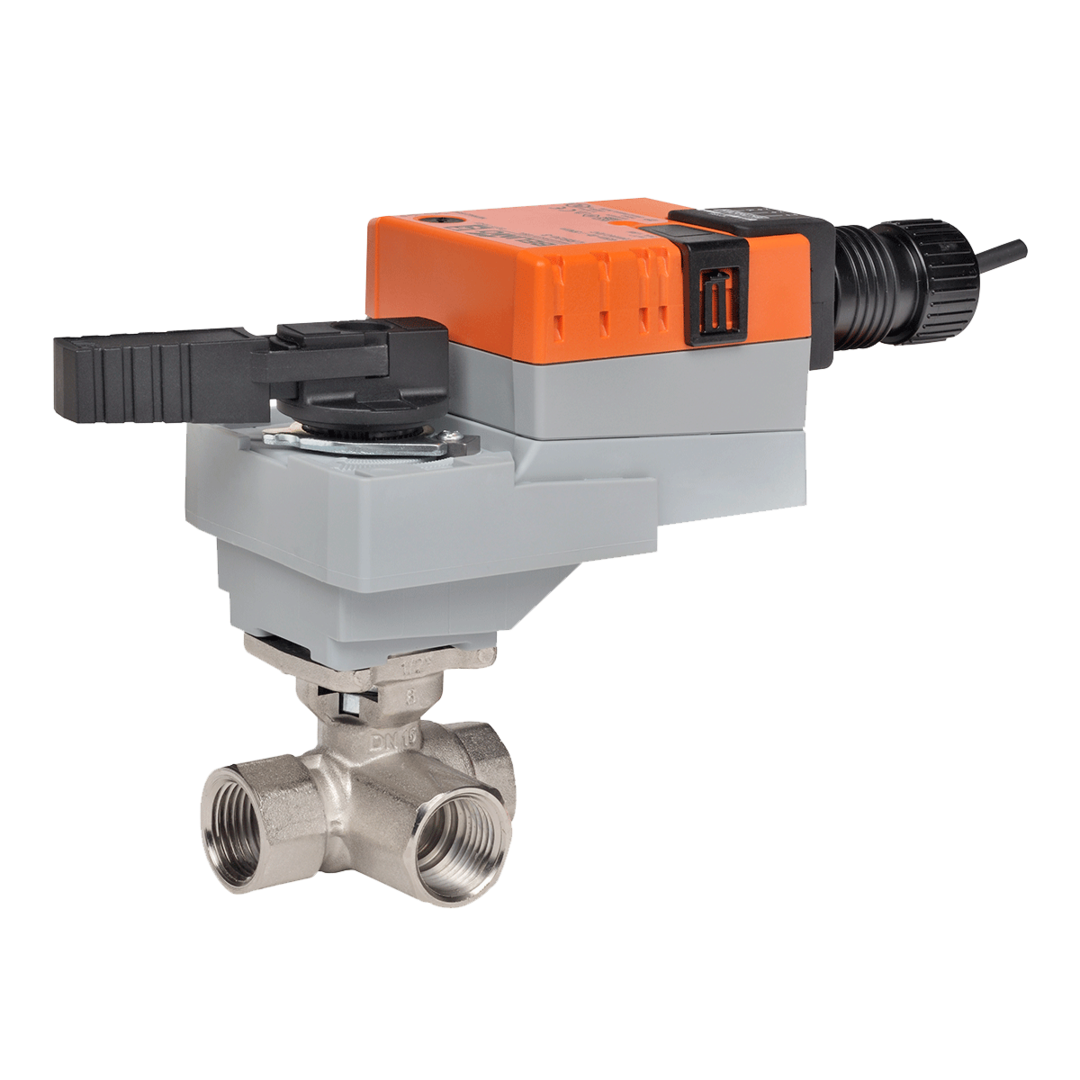

B321B+LRB24-3-T | CCV | 0.75" | 3 Way | 24 Cv | w/ Non-Spg | 24V | Floating | Belimo

Characterized Control Valve (CCV), 3/4", 3-way, Cv 24 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals

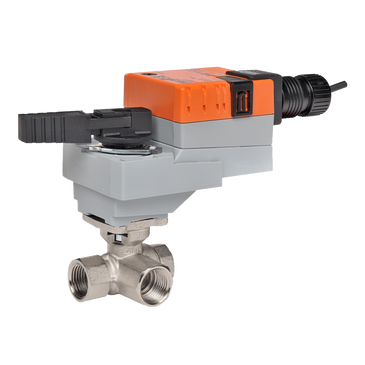

Belimo | B321B+LRB24-3-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B321B+LRB24-3-T

Documents and manuals

Belimo B321B+LRB24-3-T Documents

Overview

Details for B321B+LRB24-3-T

CCV | 0.75" | 3 Way | 24 Cv | w/ Non-Spg | 24V | Floating

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
24
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
0.75" [20]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 1
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
