B320-490-470+LRB24-SR | CCV | 0.75" | 6 Way | 4.90 | 4.70 Cv | w/ Non-Spring | 24V | 2-10V | Belimo

Characterized Control Valve (6-way CCV), 3/4", 6-way, Seq 1 Cv 4.9, Seq 2 Cv 4.7|Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

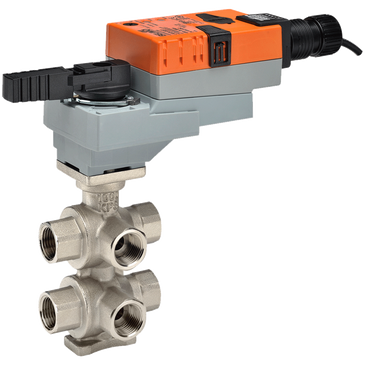

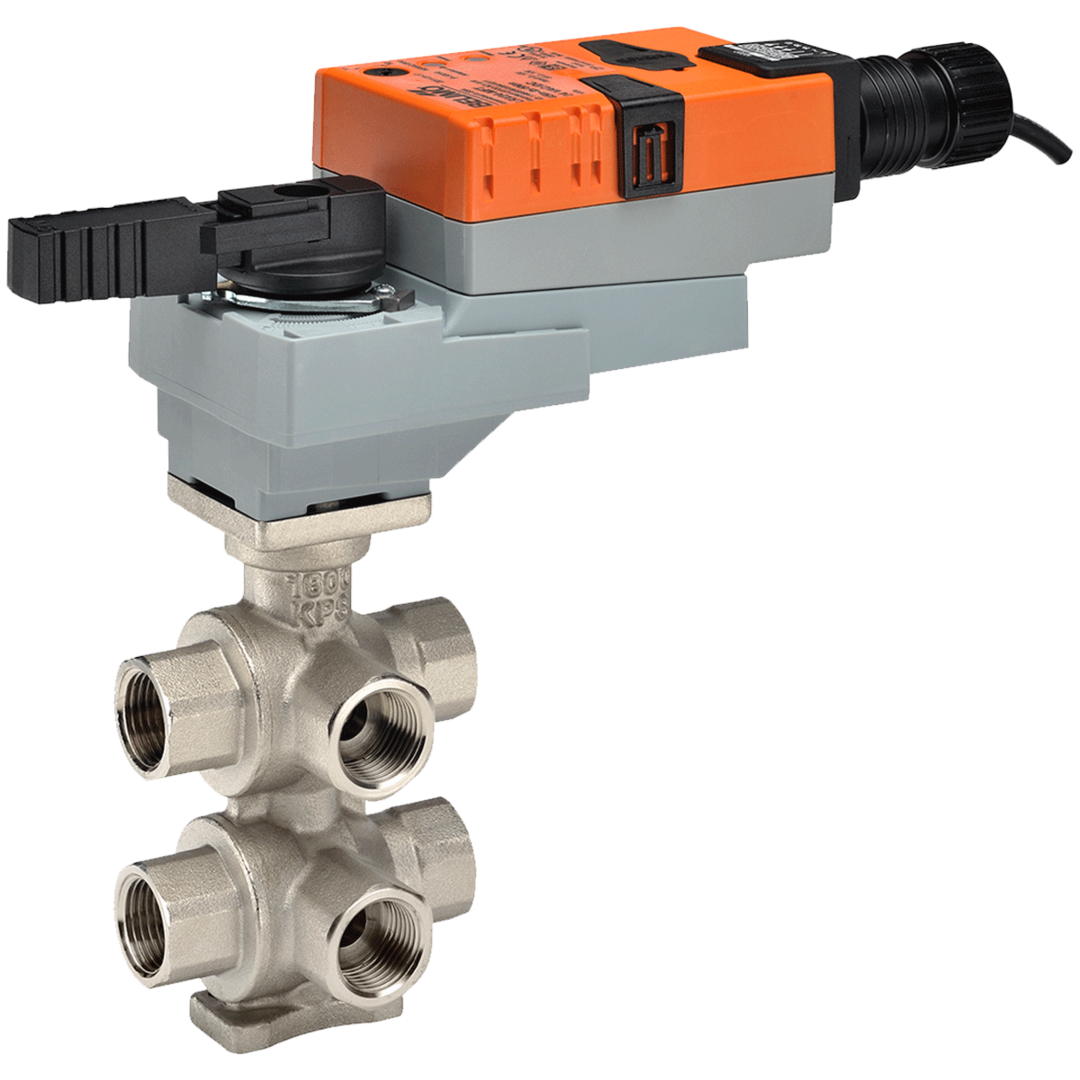

Belimo | B320-490-470+LRB24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B320-490-470+LRB24-SR

Documents and manuals

Belimo B320-490-470+LRB24-SR Documents

Overview

Details for B320-490-470+LRB24-SR

CCV | 0.75" | 6 Way | 4.90 | 4.70 Cv | w/ Non-Spring | 24V | 2-10V

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
Sequence 1 (angle 0...30B0) dead zone (30...60B0) sequence 2 (angle 60...90B0)
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
6-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
0.75" [20]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
