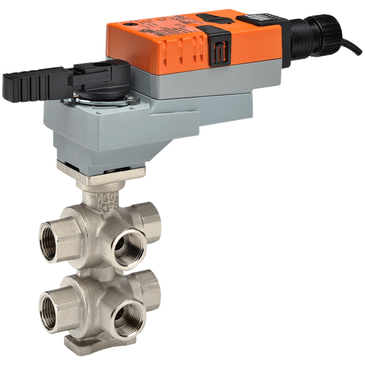

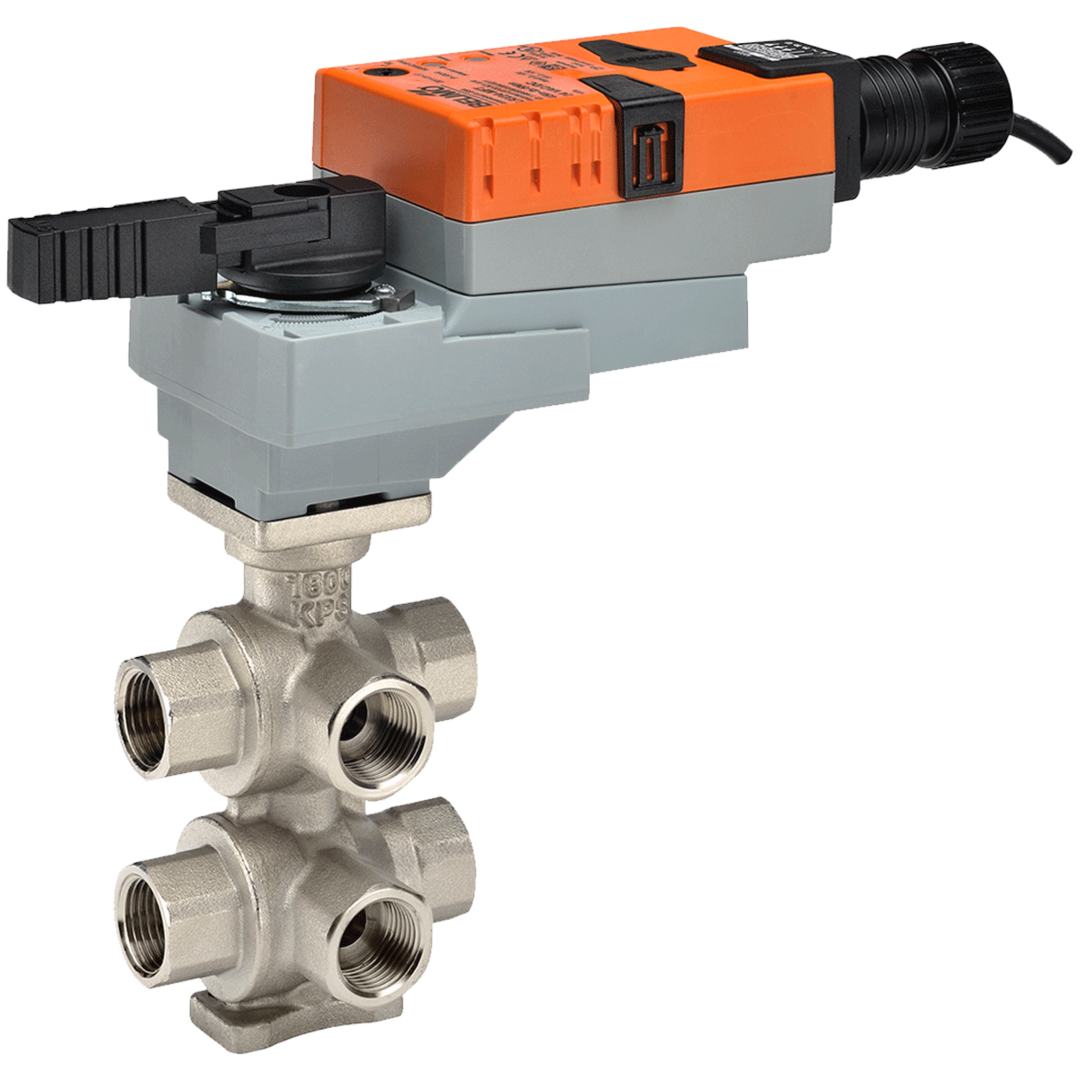

B320-490-400+LRX24-MFT | CCV | 0.75" | 6 Way | 4.90 | 4.00 Cv | w/ Non-Spring | 24V | 2-10V | Belimo
Characterized Control Valve (6-way CCV), 3/4", 6-way, Seq 1 Cv 4.9, Seq 2 Cv 4|Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable
Documents and manuals
Belimo B320-490-400+LRX24-MFT Documents
Overview
Details for B320-490-400+LRX24-MFT
CCV | 0.75" | 6 Way | 4.90 | 4.00 Cv | w/ Non-Spring | 24V | 2-10V
Application
The 6-way characterized control valve is ideal for chilled beams, radiant ceilings, and Fan Coil Units offering reduced wiring by using a single actuator instead of two. It eliminates the need for a change over valve and enables the use of a single coil for heating and cooling.
Operation
A loop pressure relief is designed into port number two (2). This allows the increased pressure to dissipate to the supply loop on port number one (1). This is intended to release any pressure build up in the loop (coil) when the valve is in the closed position and is isolated from the system expansion vessel. The change in pressure occurs due to a change in the media temperature in the coil while isolated from the pressure vessel. The pressure relief does not affect the effi ciency of the system because cross-fl ow cannot occur between the heating and cooling loops. The system loops (heating/cooling) should share a common expansion vessel to keep the system pressure and volume balanced.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- Sequence 1 (angle 0...30B0) dead zone (30...60B0) sequence 2 (angle 60...90B0)
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 6-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.2 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
