Get Special Pricing!
B312+LF24-SR-S US | CCV | 0.5" | 3 Way | 3 Cv | w/ Spg Rtn | 24V | 2-10V | SW | Belimo

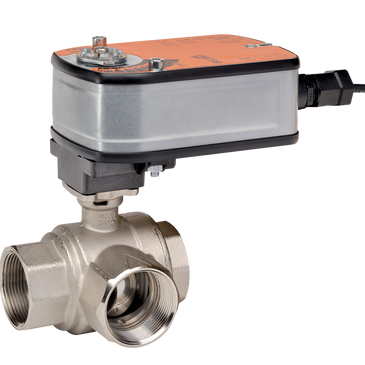

Characterized Control Valve (CCV), 1/2", 3-way, Cv 3 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, modulating
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B312+LF24-SR-S US
Overview
Details for B312+LF24-SR-S US
CCV | 0.5" | 3 Way | 3 Cv | w/ Spg Rtn | 24V | 2-10V | SW
Applications
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 3
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 1 x SPDT
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <25 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
