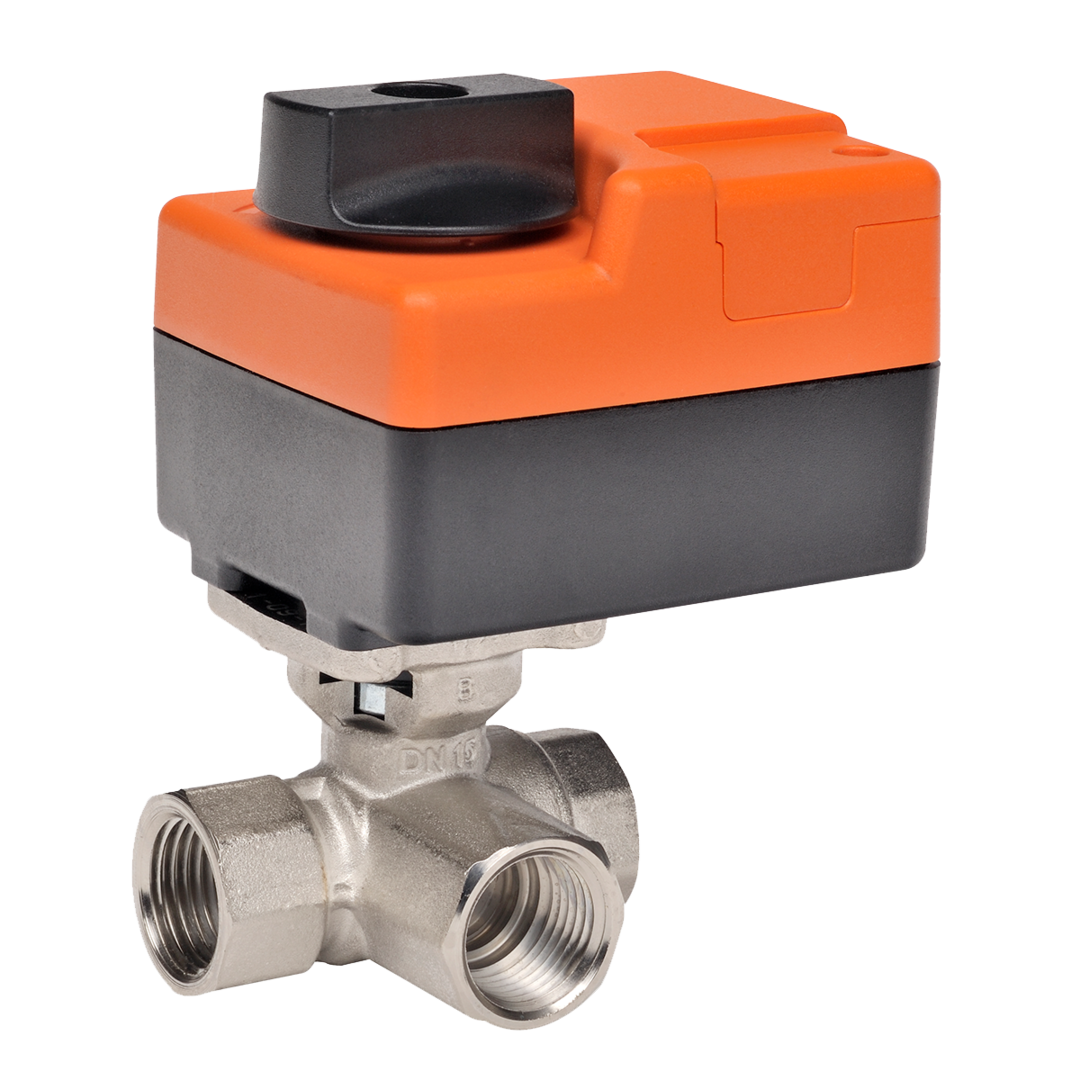

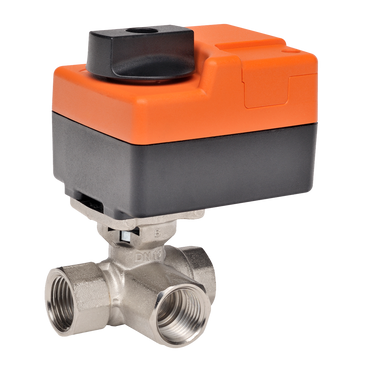

B311B+TR24-3-T US | CCV | 0.5" | 3 Way | 1.9 Cv | w/ Non-Spg | 24V | Floating | Belimo

Characterized Control Valve (CCV), 1/2", 3-way, Cv 1.9 |Valve Actuator, Non fail-safe, AC 24 V, On/Off, Floating point, terminals

Belimo | B311B+TR24-3-T US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B311B+TR24-3-T US

Documents and manuals

Belimo B311B+TR24-3-T US Documents

Overview

Details for B311B+TR24-3-T US

CCV | 0.5" | 3 Way | 1.9 Cv | w/ Non-Spg | 24V | Floating

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
1.9
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP40 NEMA 1
Electrical Connection
terminals
Manual Override
Push down handle
Power Consumption (Running)
1 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC 24 V
