B249VSS+GKX24-MFT-X1 | Ball Valve | 2
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: B249VSS+GKX24-MFT-X1

Web Price:

$2,497.05
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

B249VSS+GKX24-MFT-X1 | Ball Valve | 2" | 2 Way | 108 Cv | w/ Electronic FS | 24V | MFT | Belimo

Ball Valve (VSS), 2", 2-way, Cv 108 |Configurable Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo | B249VSS+GKX24-MFT-X1

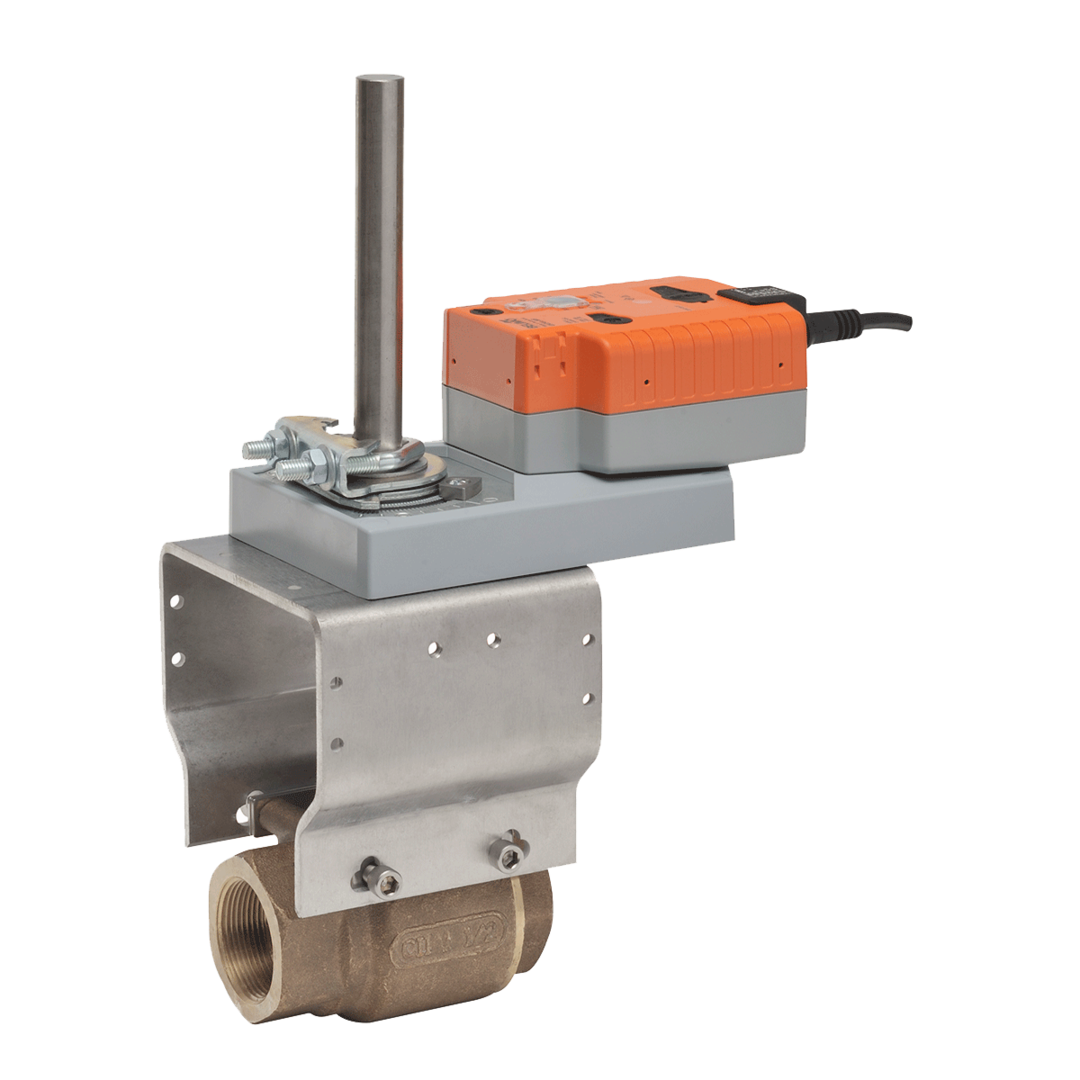

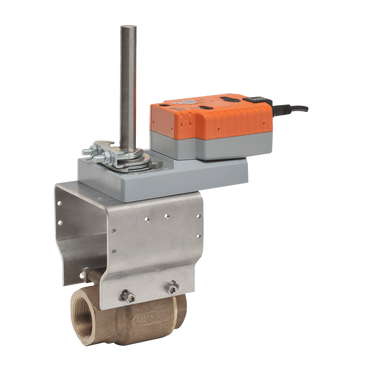

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B249VSS+GKX24-MFT-X1

Documents and manuals

Belimo B249VSS+GKX24-MFT-X1 Documents

Overview

Details for B249VSS+GKX24-MFT-X1

Ball Valve | 2" | 2 Way | 108 Cv | w/ Electronic FS | 24V | MFT

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
90B0 rotation A b AB open ccw B b AB open cw
Cv
108
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Electrical fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
12 W
Running Time (Fail-safe)
<35 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
