B238+AFRB24 | CCV | 1.5" | 2 Way | 19 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Characterized Control Valve (CCV), 1 1/2", 2-way, Cv 19 |Valve Actuator, Spring return, AC/DC 24 V, On/Off

Belimo | B238+AFRB24

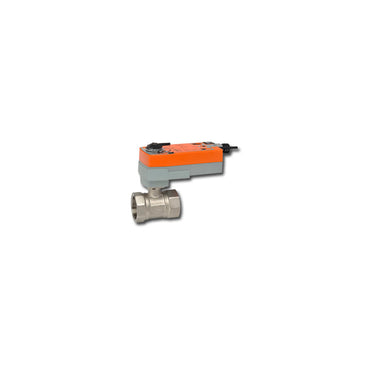

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B238+AFRB24

Documents and manuals

Belimo B238+AFRB24 Documents

Overview

Details for B238+AFRB24

CCV | 1.5" | 2 Way | 19 Cv | w/ Spg Rtn | 24V | On/Off

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
19
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
