B232+AFRX24 N4 | CCV | 1.25" | 2 Way | 37 Cv | Spg Rtn | 24V | On/Off | NEMA 4 | Belimo

Characterized Control Valve (CCV), 1 1/4", 2-way, Cv 37 |Valve Actuator, Spring return, AC/DC 24 V, On/Off, NEMA 4X

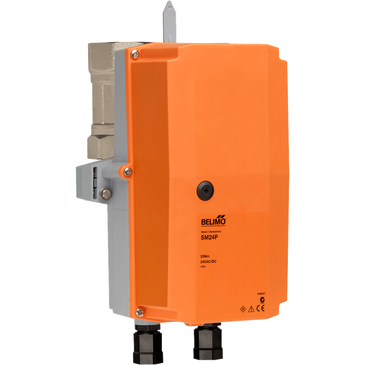

Belimo | B232+AFRX24 N4

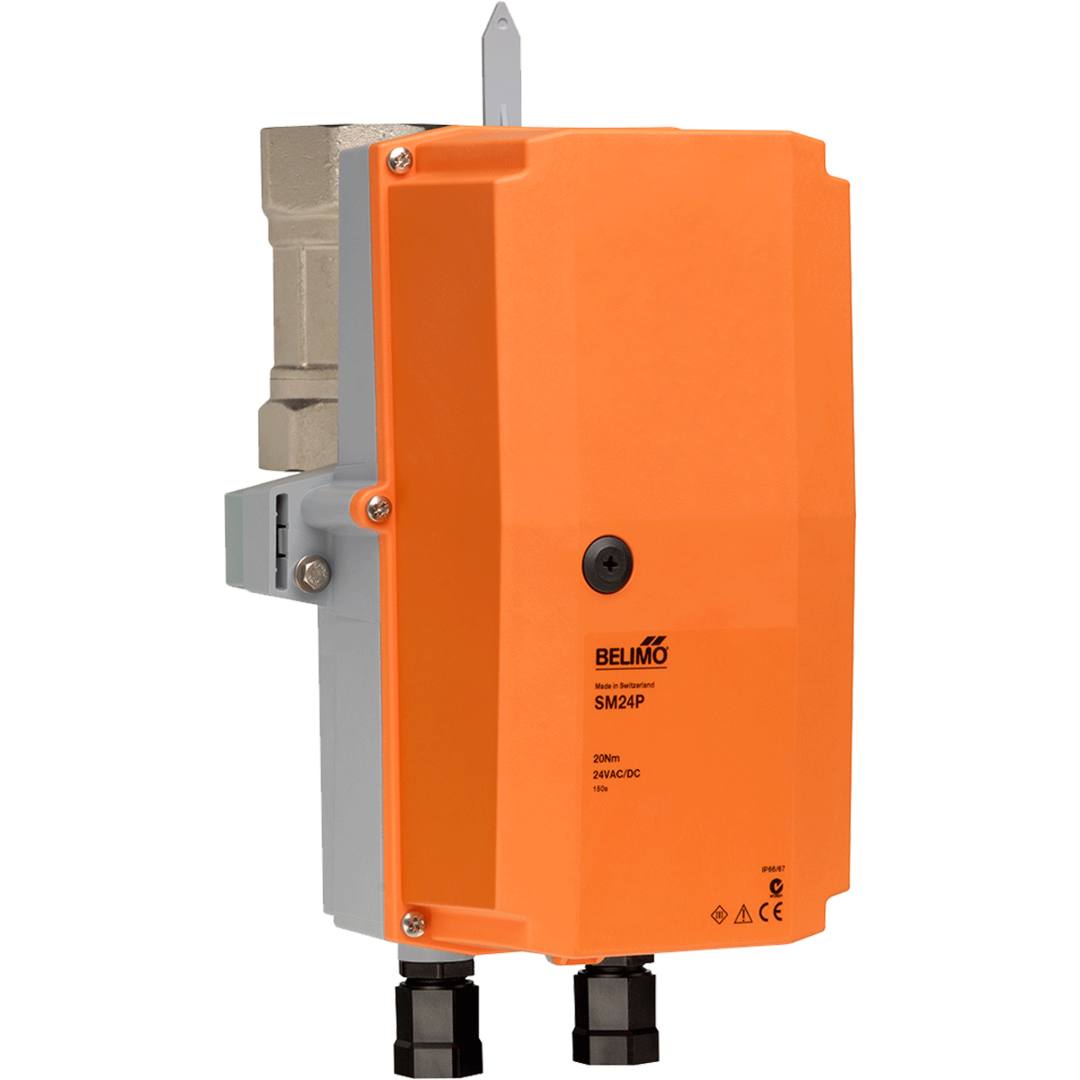

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B232+AFRX24 N4

Documents and manuals

Belimo B232+AFRX24 N4 Documents


Details for B232+AFRX24 N4

CCV | 1.25" | 2 Way | 37 Cv | Spg Rtn | 24V | On/Off | NEMA 4

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow


Valve specifications
Angle of Rotation
Controllable Flow Range
End Fitting
Internal thread
Chilled or hot water up to 60% glycol
Pressure Independent
Stainless steel
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Spring return
Control Type
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
