B225HT464+LF24-SR-S US | HTCCV | 1" | 2 Way | 4.64 Cv | w/ Spg Rtn | 24V | 2-10V | SW | Belimo

Characterized Control Valve (HTCCV), 1", 2-way, Cv 4.64 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, modulating

Belimo | B225HT464+LF24-SR-S US

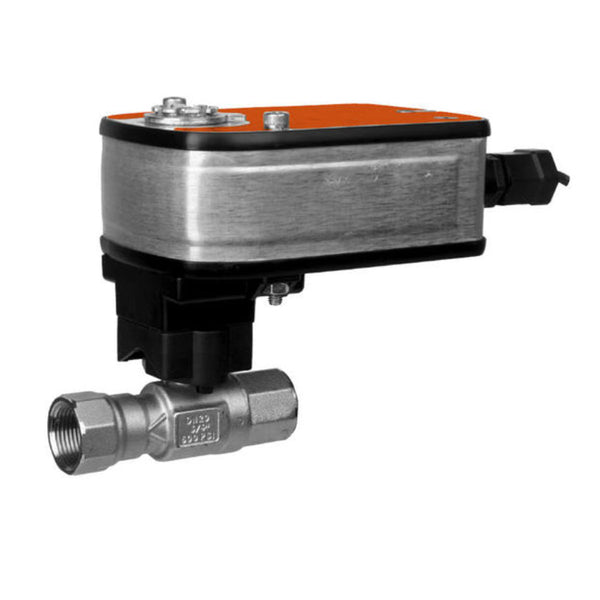

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225HT464+LF24-SR-S US

Documents and manuals

Belimo B225HT464+LF24-SR-S US Documents

Overview

Details for B225HT464+LF24-SR-S US

HTCCV | 1" | 2 Way | 4.64 Cv | w/ Spg Rtn | 24V | 2-10V | SW

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
4.64
End Fitting
Internal thread
Fluid
High temperature hot water/low pressure steam up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
