B225HT2800+LF24-SR US | HTCCV | 1" | 2 Way | 28 Cv | w/ Spg Rtn | 24V | 2-10V | Belimo

Characterized Control Valve (HTCCV), 1", 2-way, Cv 28 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, modulating

Belimo | B225HT2800+LF24-SR US

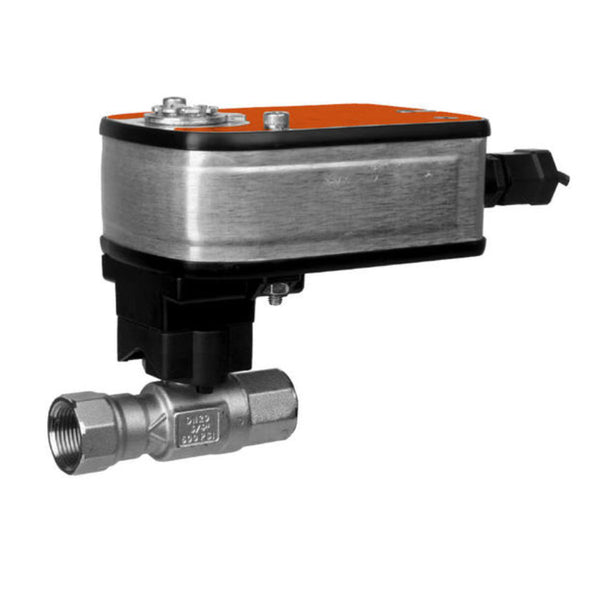

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225HT2800+LF24-SR US
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo B225HT2800+LF24-SR US Documents

Datasheet Installation Instructions More Info

Overview

Details for B225HT2800+LF24-SR US

HTCCV | 1" | 2 Way | 28 Cv | w/ Spg Rtn | 24V | 2-10V

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
28
End Fitting
Internal thread
Fluid
High temperature hot water/low pressure steam up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
