B225HT1160+LRB24-SR | HTCCV | 1" | 2 Way | 11.6 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

Characterized Control Valve (HTCCV), 1", 2-way, Cv 11.6 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

Belimo | B225HT1160+LRB24-SR

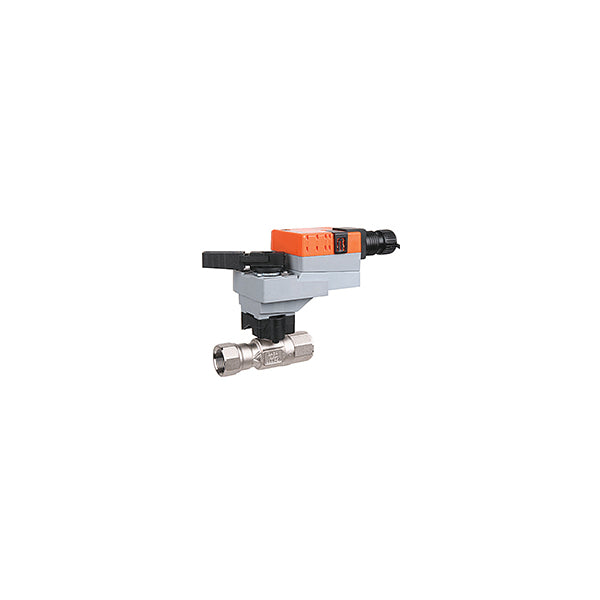

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225HT1160+LRB24-SR

Documents and manuals

Belimo B225HT1160+LRB24-SR Documents

Overview

Details for B225HT1160+LRB24-SR

HTCCV | 1" | 2 Way | 11.6 Cv | w/ Non-Spg | 24V | 2-10V

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
11.6
End Fitting
Internal thread
Fluid
High temperature hot water/low pressure steam up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
