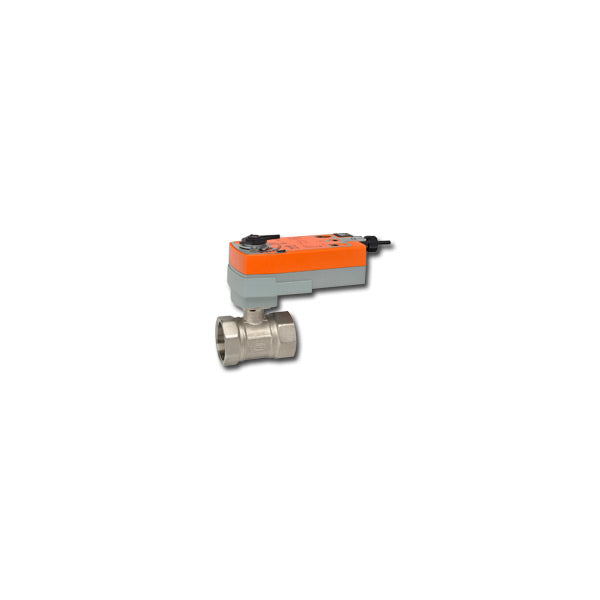

B240+AFRBUP | CCV | 1.5" | 2 Way | 37 Cv | w/ Spg Rtn | 24 -240V | On/Off | Belimo

Characterized Control Valve (CCV), 1 1/2", 2-way, Cv 37 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off

Belimo | B240+AFRBUP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B240+AFRBUP
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo B240+AFRBUP Documents

Datasheet Installation Instructions More Info

Overview

Details for B240+AFRBUP

CCV | 1.5" | 2 Way | 37 Cv | w/ Spg Rtn | 24 -240V | On/Off

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.


Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
