B225HT1160+LF24-3 US | HTCCV | 1
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: B225HT1160+LF24-3 US

Web Price:

$534.60
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

B225HT1160+LF24-3 US | HTCCV | 1" | 2 Way | 11.6 Cv | w/ Spg Rtn | 24V | Floating | Belimo

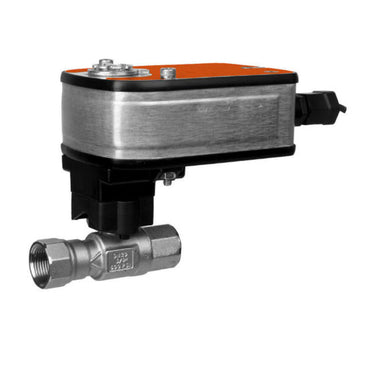

Characterized Control Valve (HTCCV), 1", 2-way, Cv 11.6 |Valve Actuator, Spring return, AC/DC 24 V, On/Off, Floating point

Belimo | B225HT1160+LF24-3 US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B225HT1160+LF24-3 US

Documents and manuals

Belimo B225HT1160+LF24-3 US Documents

Overview

Details for B225HT1160+LF24-3 US

HTCCV | 1" | 2 Way | 11.6 Cv | w/ Spg Rtn | 24V | Floating

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
11.6
End Fitting
Internal thread
Fluid
High temperature hot water/low pressure steam up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
