B224VSS+AFX24-MFT95-X1 | Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24V | MFT | Belimo (OBSOLETE)
Ball Valve (VSS), 1", 2-way, Cv 43 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 0...135 Ω, MFT/programmable

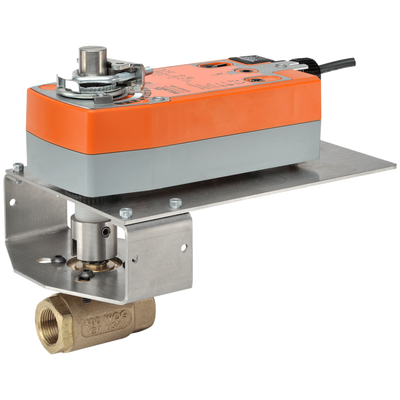

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B224VSS+AFX24-MFT95-X1
Overview
Details for B224VSS+AFX24-MFT95-X1
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Ball Valve | 1" | 2 Way | 43 Cv | w/ Spg Rtn | 24V | MFT
Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 90B0 rotation
- Cv
- 43
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- 0...135 N)
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 7.5 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
