B215HT116+TFRB24-SR-S | HTCCV | 0.5" | 2 Way | 1.16 Cv | w/ Spg Rtn | 24V | 2-10V | SW | Belimo

Characterized Control Valve (HTCCV), 1/2", 2-way, Cv 1.16 |Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1 x SPDT, modulating

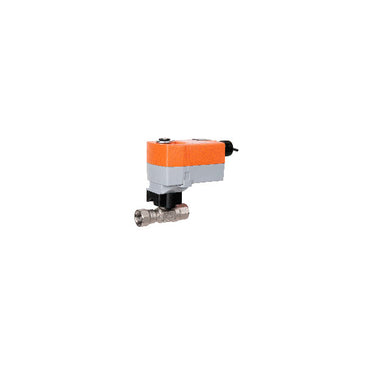

Belimo | B215HT116+TFRB24-SR-S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B215HT116+TFRB24-SR-S

Documents and manuals

Belimo B215HT116+TFRB24-SR-S Documents

Overview

Details for B215HT116+TFRB24-SR-S

HTCCV | 0.5" | 2 Way | 1.16 Cv | w/ Spg Rtn | 24V | 2-10V | SW

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
75B0
Cv
1.16
End Fitting
Internal thread
Fluid
High temperature hot water/low pressure steam up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Control Type
DC 2...10 V
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
95 s
Voltage AC/DC
AC/DC 24 V
