B213+TFRB24 | CCV | 0.5" | 2 Way | 4.7 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Characterized Control Valve (CCV), 1/2", 2-way, Cv 4.7 |Valve Actuator, Spring return, AC/DC 24 V, On/Off

Belimo | B213+TFRB24

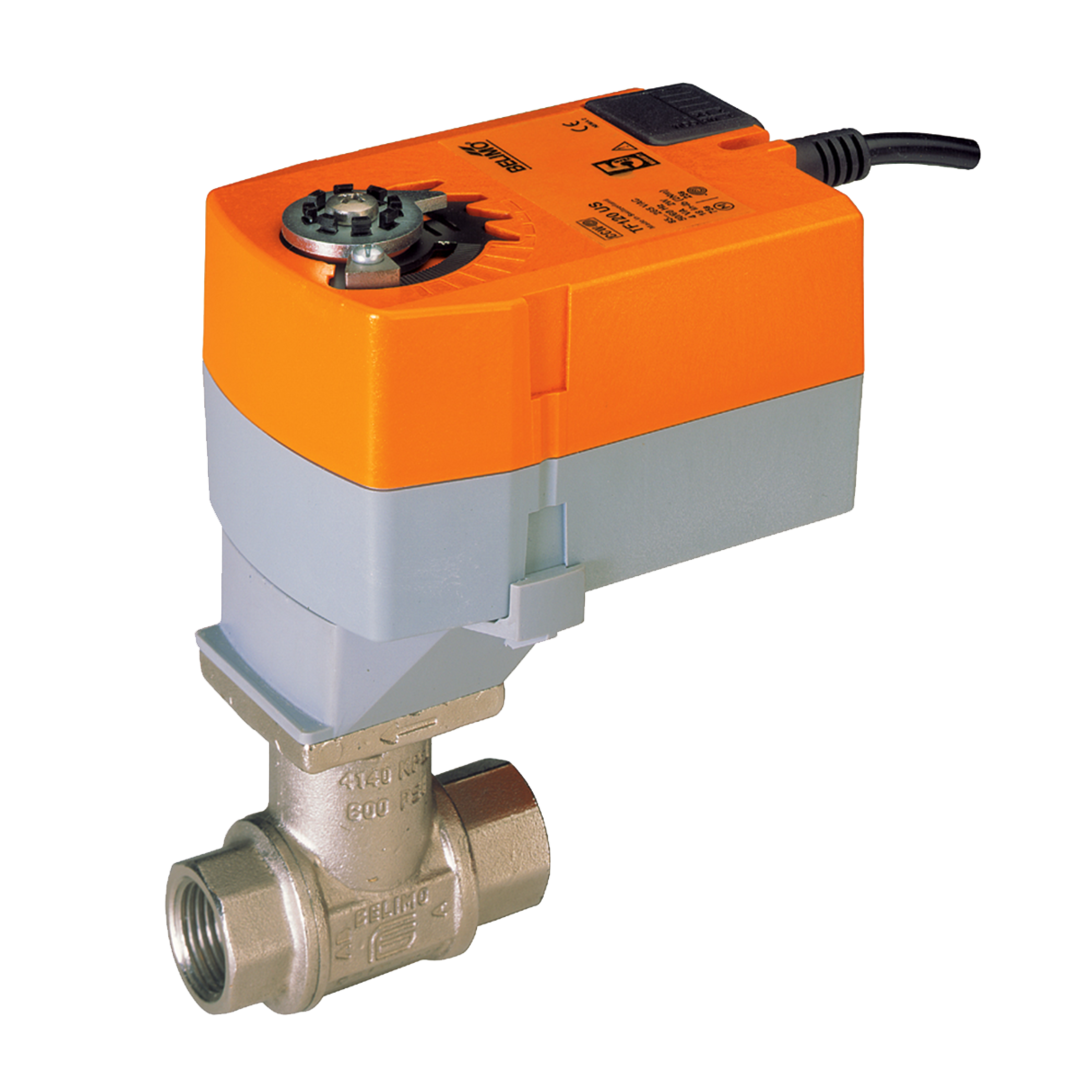

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B213+TFRB24

CCV | 0.5" | 2 Way | 4.7 Cv | w/ Spg Rtn | 24V | On/Off

Specifications

Valve specifications
Angle of Rotation
95
Controllable Flow Range
75B0
Cv
4.7
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<75 s
Running Time (Motor)
75 s
Voltage AC/DC
AC/DC 24 V
