B213+LRCB24-3 | CCV | 0.5
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: B213+LRCB24-3

Web Price:

$198.45
Availability: This product is currently available to purchase
This item ships FREE*
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

B213+LRCB24-3 | CCV | 0.5" | 2 Way | 4.7 Cv | w/ Non-Spg | 24V | Floating | Belimo

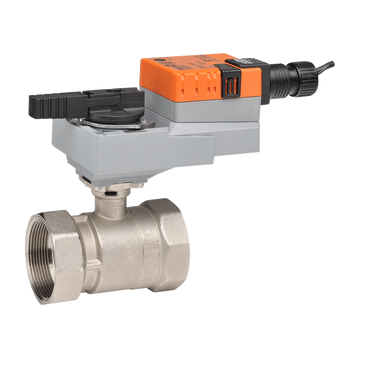

Belimo | B213+LRCB24-3

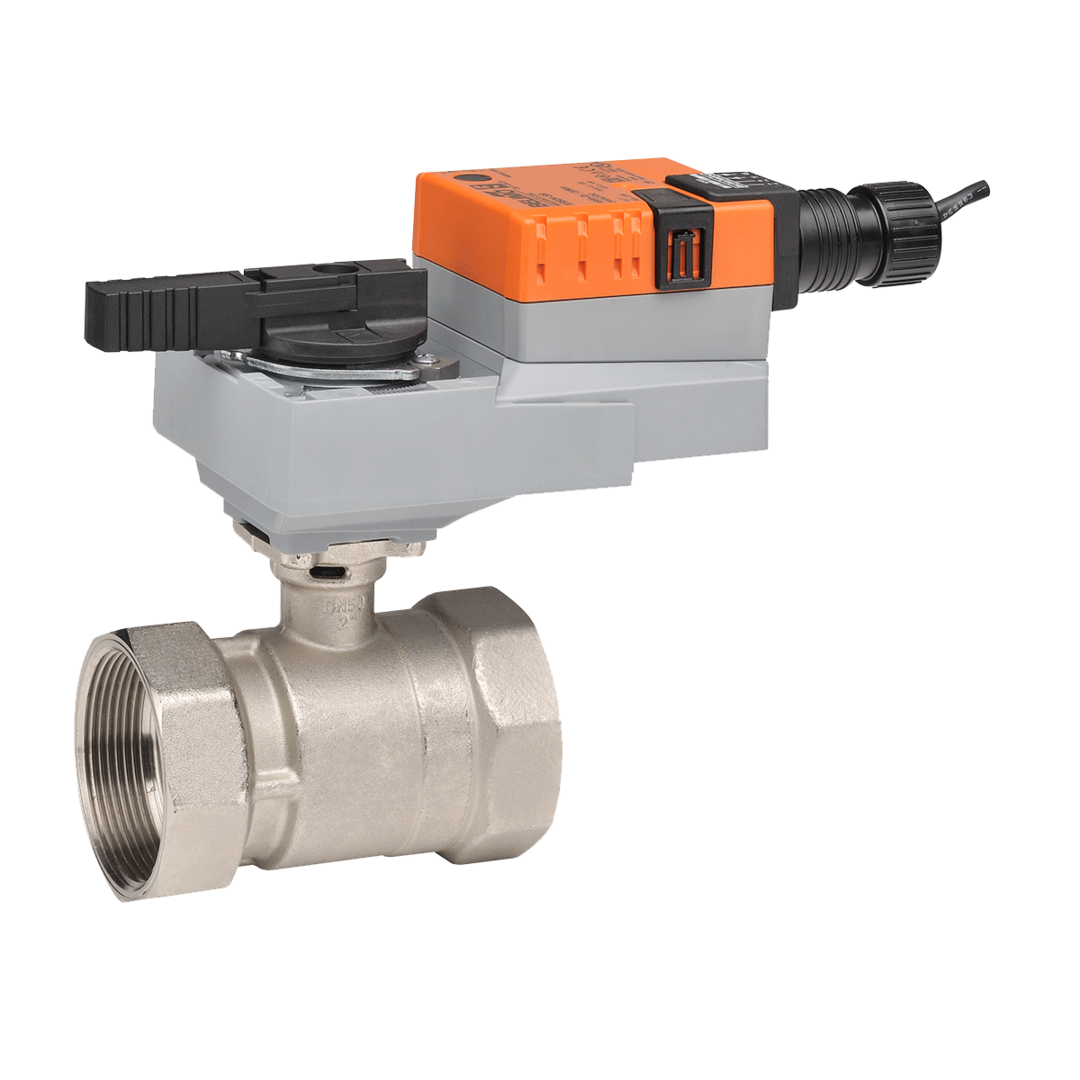

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B213+LRCB24-3

CCV | 0.5" | 2 Way | 4.7 Cv | w/ Non-Spg | 24V | Floating

Specifications

Item Number
B213+LRCB24-3
Brand
Belimo
Control Input
Floating
Control Valves Type
CCV
Cv / GPM
4.7 Cv
Spring Return
Non-Spring Return
Valve Size
0.5" - 2 Way
Voltage
24V
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
40 s / 90B0
Voltage AC/DC
AC/DC 24 V
Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
4.7
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]

Documents and manuals

Belimo B213+LRCB24-3 Documents
