B213+LRB24-3-S | CCV | 0.5" | 2 Way | 4.7 Cv | w/ Non-Spg | 24V | Floating | SW | Belimo

Belimo | B213+LRB24-3-S

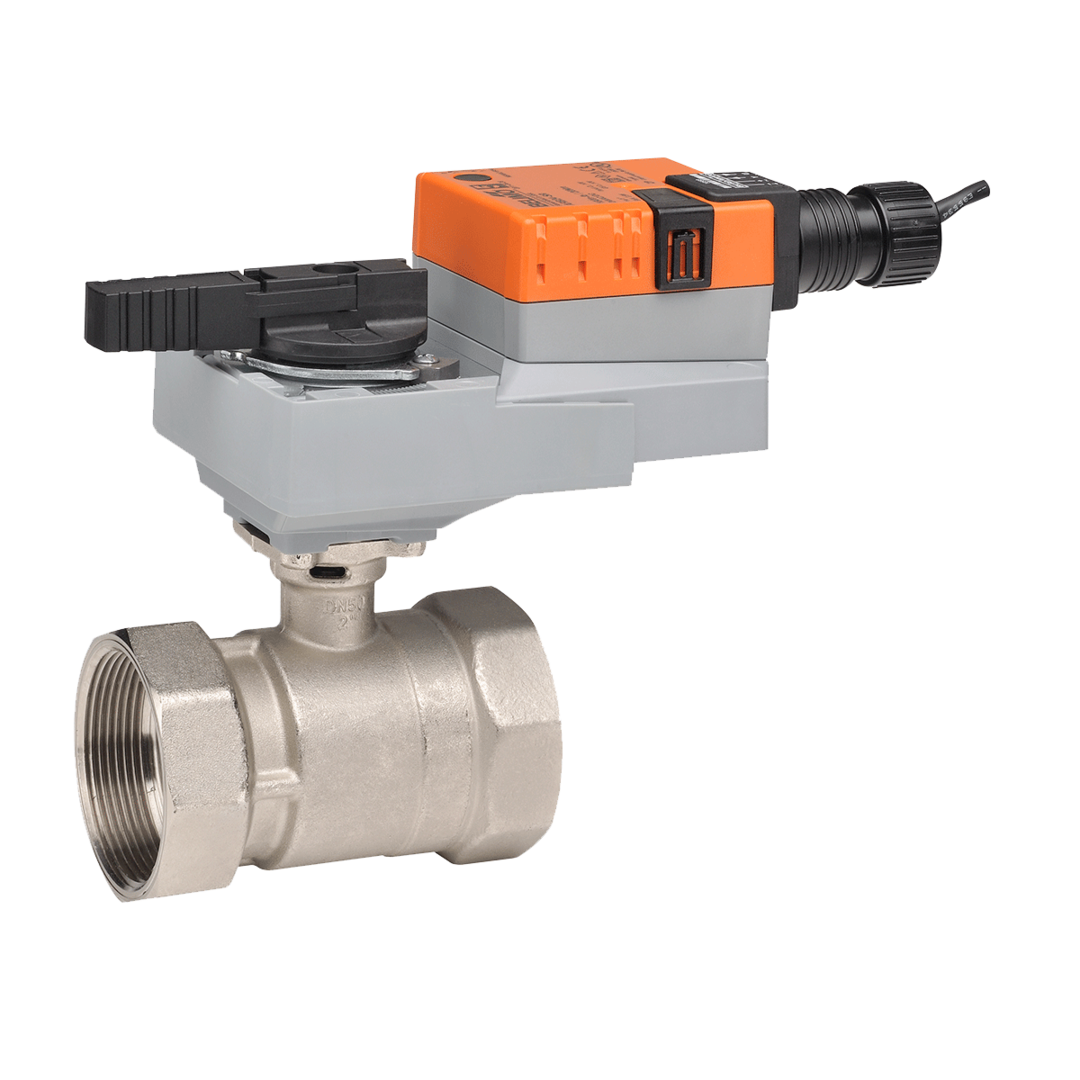

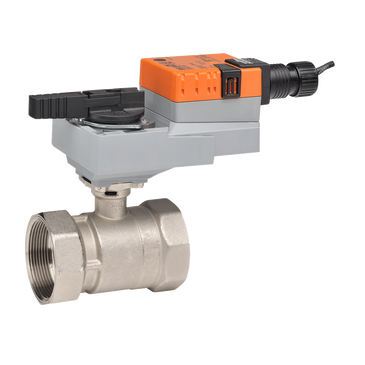

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B213+LRB24-3-S

CCV | 0.5" | 2 Way | 4.7 Cv | w/ Non-Spg | 24V | Floating | SW

Specifications

Item Number
B213+LRB24-3-S
Brand
Belimo
Control Input
Floating
Control Valves Type
CCV
Cv / GPM
4.7 Cv
End Switch
Yes
Spring Return
Non-Spring Return
Valve Size
0.5" - 2 Way
Voltage
24V
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
1 x SPDT
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
4.7
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]

Documents and manuals

Belimo B213+LRB24-3-S Documents

Reviews

Customer Reviews
5.0 Based on 1 Reviews
5 ★
100%
1
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
WB
11/15/2020
Winston B.

Outstanding Value

I bought two of these valves to update the valves in my country house. Took care of the installation myself. The device is light, affordable, and it also consumes little energy. The steel high-quality and rust-resistant despite the price. It was has a surprisingly quiet motor. I think this one is the best low-to-middle range budget valves, especially if you want to buy several at once.
