B212+TFRX24-MFT | CCV | 0.5" | 2 Way | 3 Cv | w/ Spg Rtn | 24V | MFT | Belimo

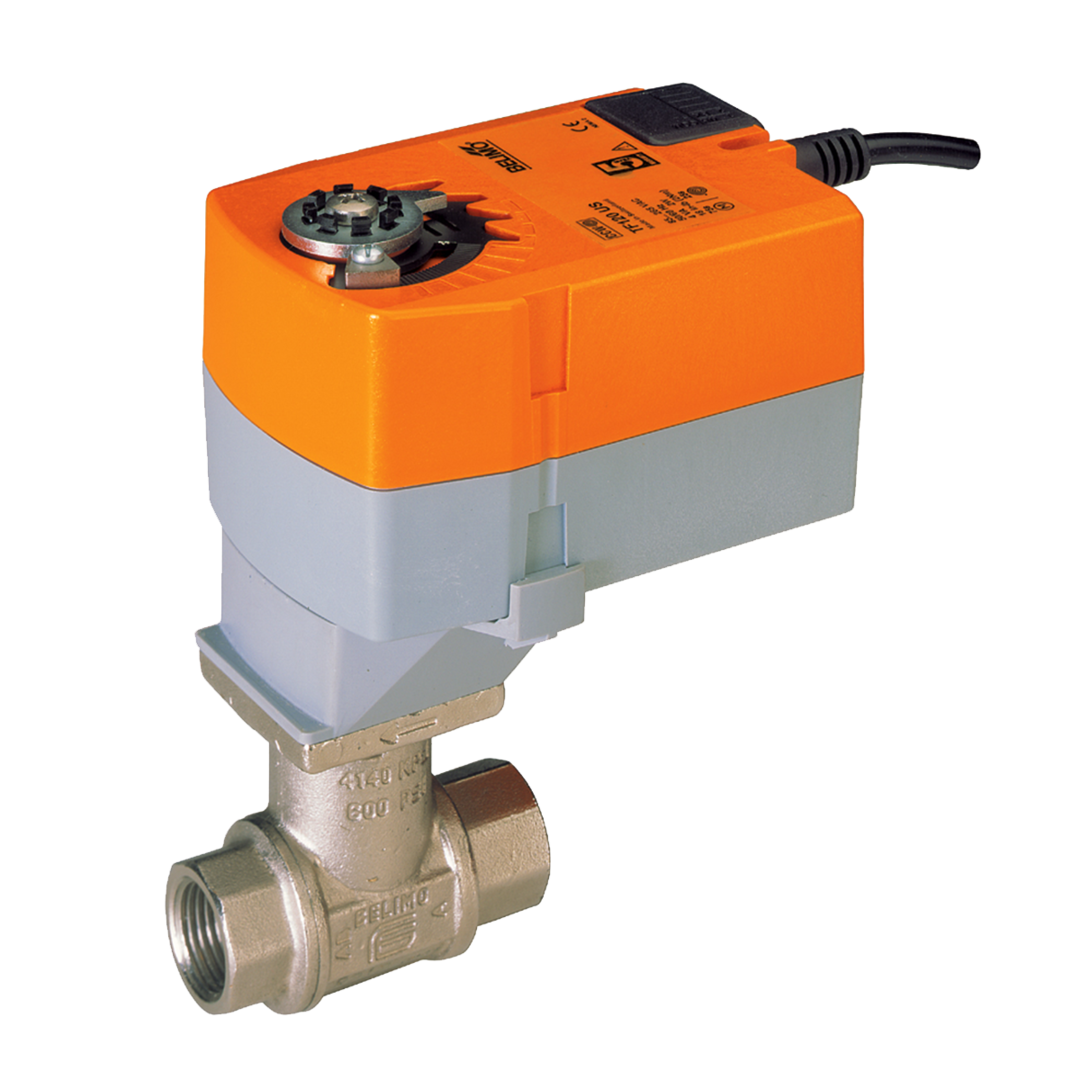

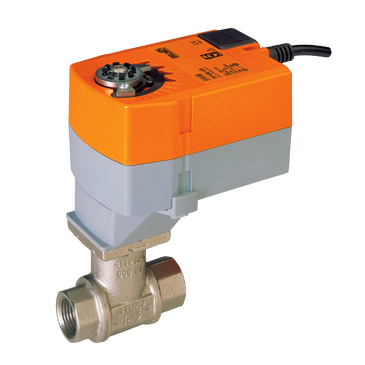

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B212+TFRX24-MFT

CCV | 0.5" | 2 Way | 3 Cv | w/ Spg Rtn | 24V | MFT

CCV | 0.5" | 2 Way | 3 Cv | w/ Spg Rtn | 24V | MFT

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Item Number: B212+TFRX24-MFT
Brand: Belimo
Control Input: Belimo MFT (Modulating)
Control Valves Type: CCV
Cv / GPM: 3Â Cv
Spring Return: Spring Return
Valve Size: 0.5" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Spring return
Control Type: MFT/Programmable
Degree of Protection: IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Power Consumption (Holding): 1 W
Power Consumption (Running): 2.5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 150 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 95
Controllable Flow Range: 75B0
Cv: 3
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]
