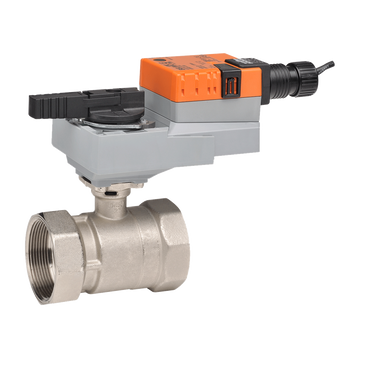

B212+LRB24-SR | CCV | 0.5" | 2 Way | 3 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

Characterized Control Valve (CCV), 1/2", 2-way, Cv 3 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, modulating

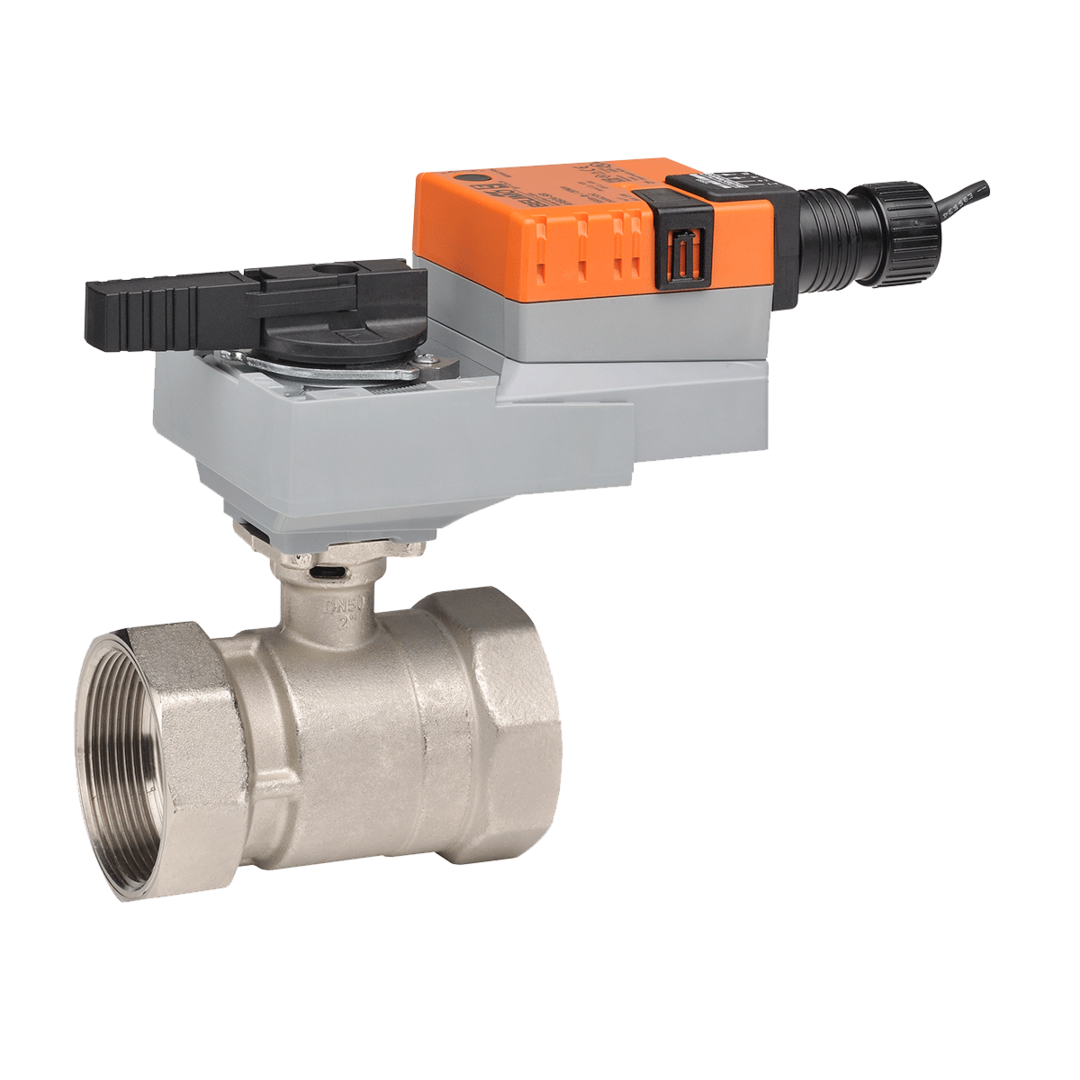

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B212+LRB24-SR

CCV | 0.5" | 2 Way | 3 Cv | w/ Non-Spg | 24V | 2-10V

n Mode of operation Product features This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 3
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]
Actuator specifications
Actuator Type: Non fail-safe
Control Type: DC 2...10 V
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Holding): 0.4 W
Power Consumption (Running): 1.5 W
Running Time (Motor): 90 s / 90B0
Voltage AC/DC: AC/DC 24 V
