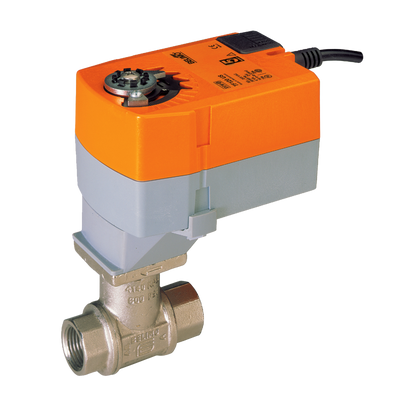

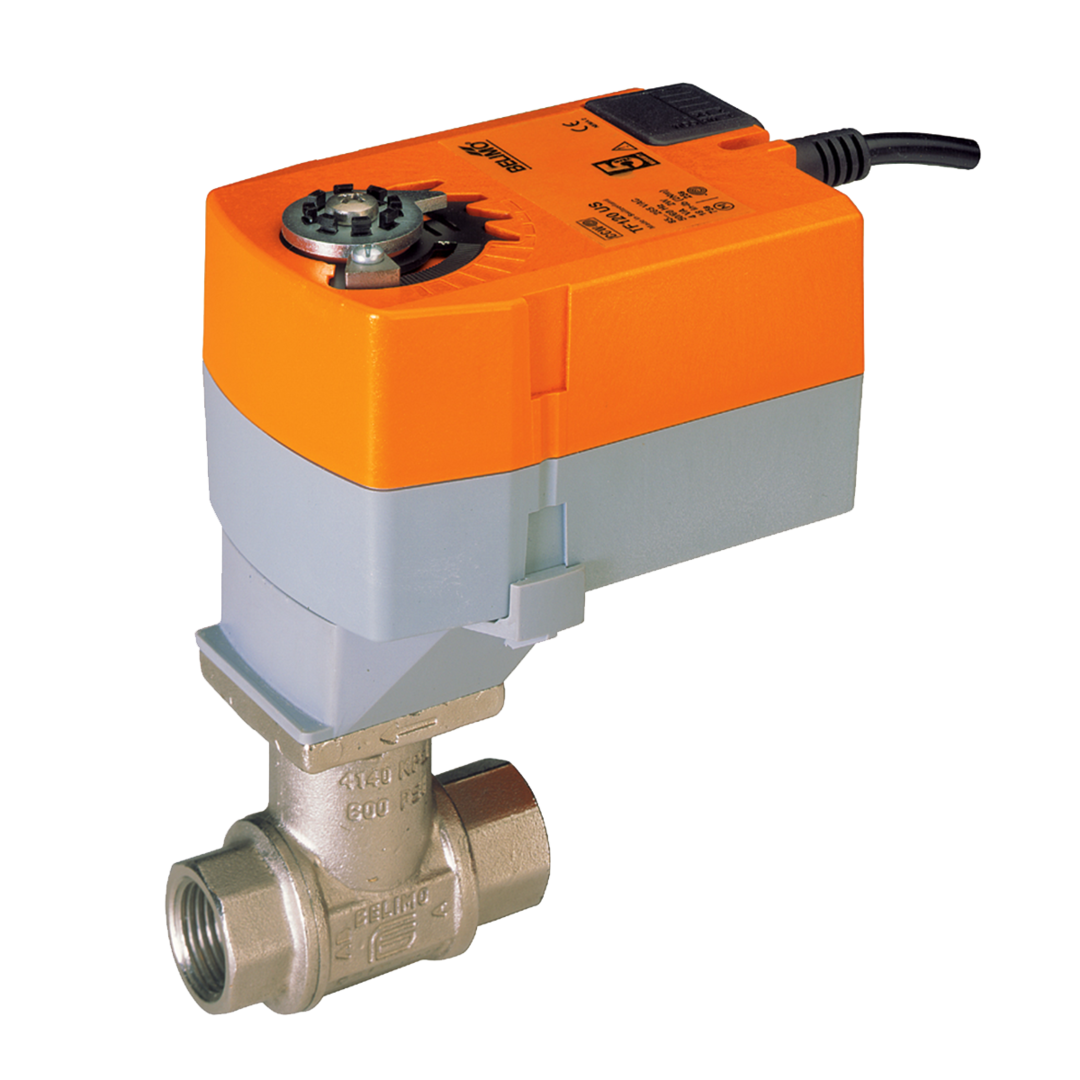

B211B+TFRB120 | CCV | 0.5" | 2 Way | 1.9 Cv | w/ Spg Rtn | 100-240V | On/Off | Belimo

Belimo | B211B+TFRB120
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B211B+TFRB120

CCV | 0.5" | 2 Way | 1.9 Cv | w/ Spg Rtn | 100-240V | On/Off

Specifications

Item Number
B211B+TFRB120
Brand
Belimo
Control Input
On/Off
Control Valves Type
CCV
Cv / GPM
1.9 Cv
Spring Return
Spring Return
Valve Size
0.5" - 2 Way
Voltage
100-240V
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP42 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<75 s
Running Time (Motor)
75 s
Voltage AC/DC
AC 100...240 V
Valve specifications
Angle of Rotation
95
Controllable Flow Range
75B0
Cv
1.9
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
0.5" [15]
