B2100VB-024+NFX24-MFT-S-X1 | VBall Valve | 1" | 2 Way | 24 Cv | w/ Spg Rtn | 24V | MFT | SW | Belimo

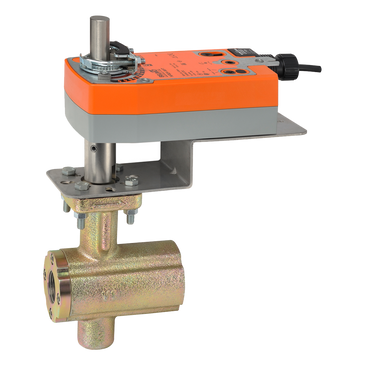

Belimo | B2100VB-024+NFX24-MFT-S-X1

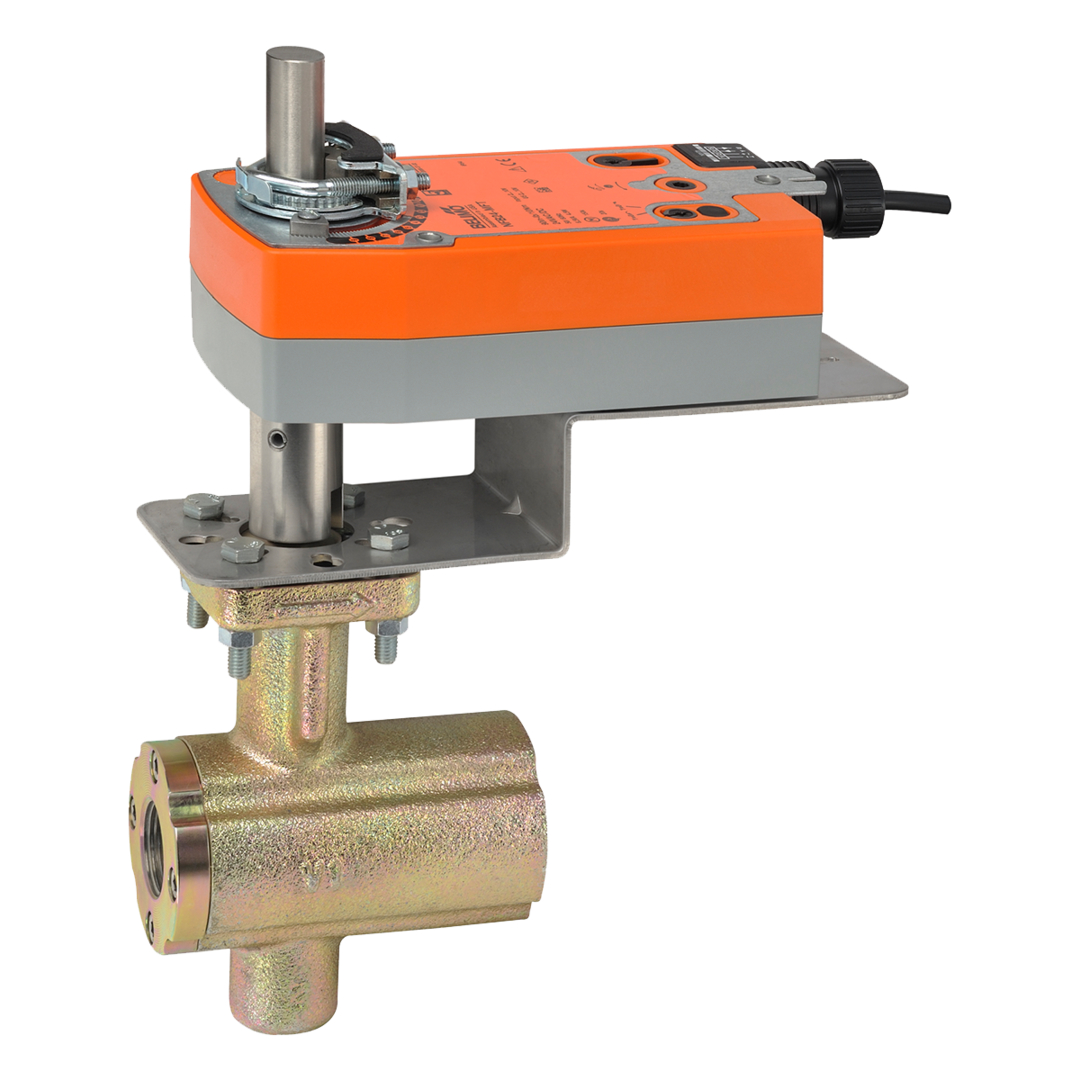

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B2100VB-024+NFX24-MFT-S-X1

VBall Valve | 1" | 2 Way | 24 Cv | w/ Spg Rtn | 24V | MFT | SW

Specifications

Item Number: B2100VB-024+NFX24-MFT-S-X1
Brand: Belimo
Control Input: Belimo MFT (Modulating)
Control Valves Type: VBall Valve
Cv / GPM: 24Â Cv
End Switch: Yes
Spring Return: Spring Return
Valve Size: 1" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Spring return
Auxiliary Switches: 2 x SPDT
Control Type: MFT/Programmable
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 3 W
Power Consumption (Running): 6.5 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 150 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 95
ANSI Class: 300
Controllable Flow Range: 75B0
Cv: 24
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 1" [25]

Documents and manuals

Belimo B2100VB-024+NFX24-MFT-S-X1 Documents

Datasheet Installation Instructions More Info
