B2100VB-024+NFBUP-S-X1 | VBall Valve | 1" | 2 Way | 24 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW | Belimo
Ball Valve (VB), 1", 2-way, ANSI Class 300, Cv 24 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off, 2 x SPDT

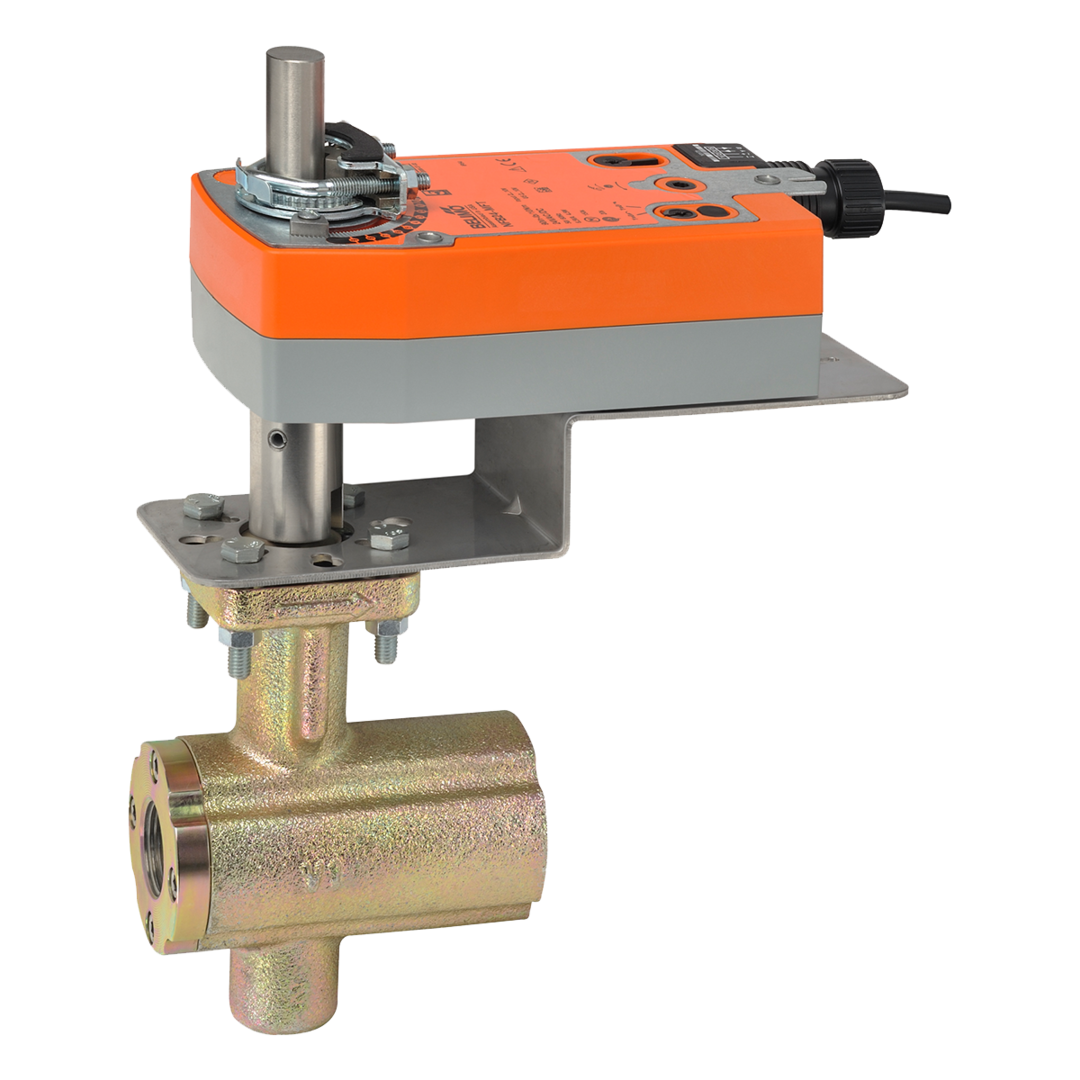

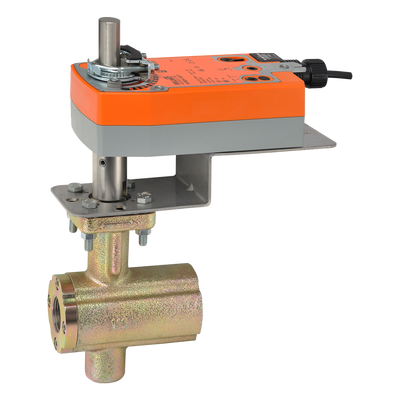

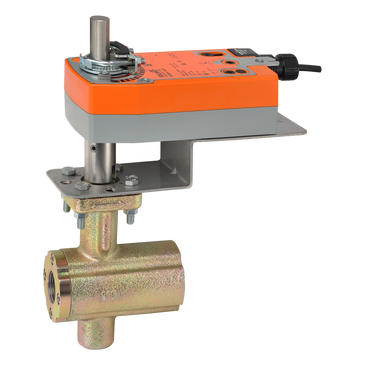

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2100VB-024+NFBUP-S-X1
Documents and manuals
Belimo B2100VB-024+NFBUP-S-X1 Documents
Overview
Details for B2100VB-024+NFBUP-S-X1
VBall Valve | 1" | 2 Way | 24 Cv | w/ Spg Rtn | 24 -240V | On/Off | SW
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 300
- Controllable Flow Range
- 75B0
- Cv
- 24
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Spring return
- Auxiliary Switches
- 2 x SPDT
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 6 W
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
