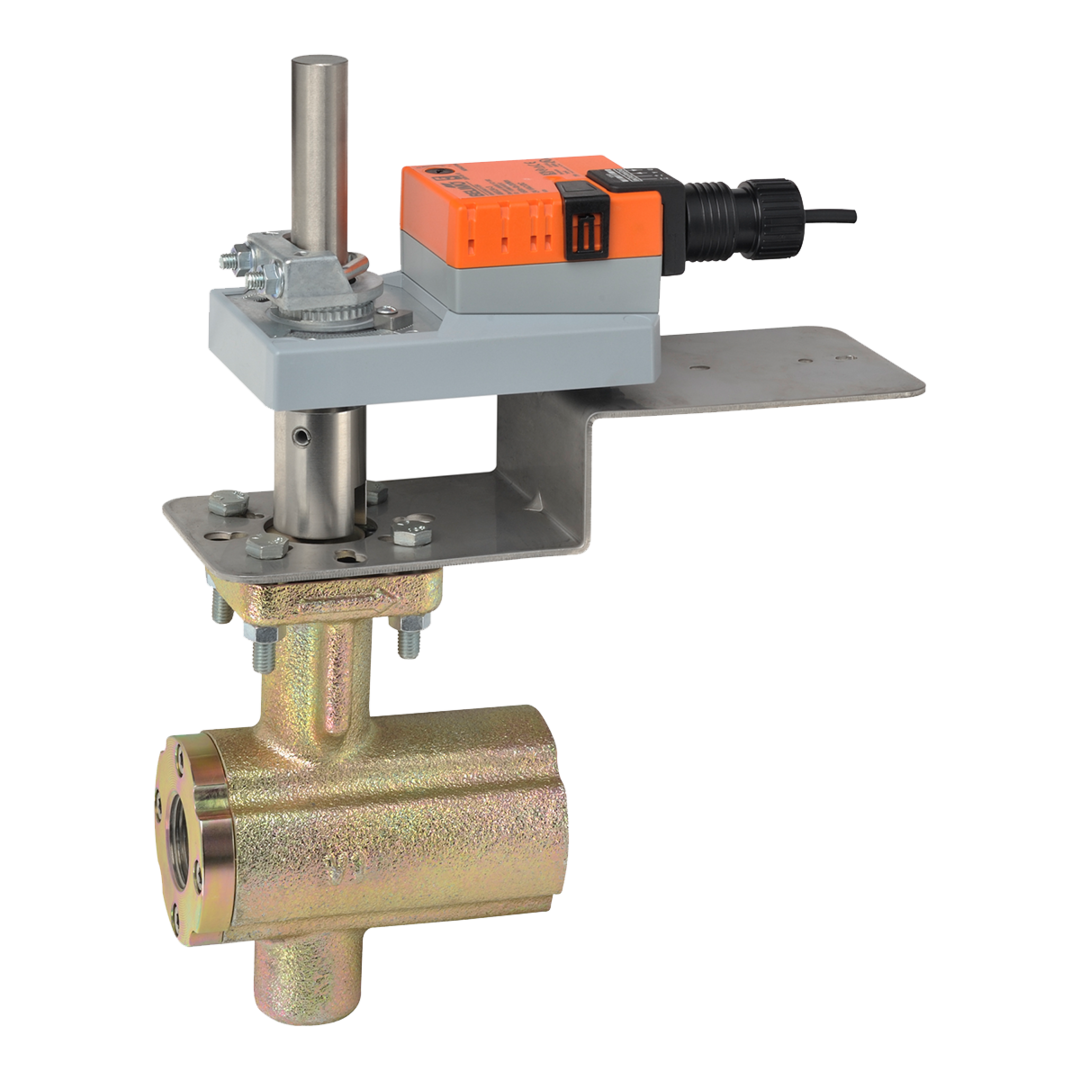

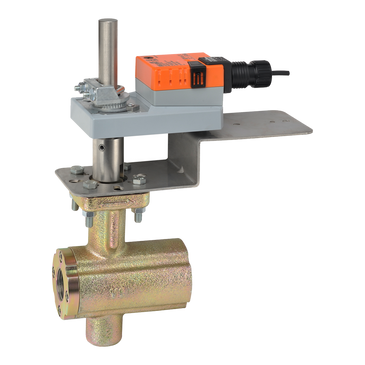

B2100VB-024+AMB24-3-X1 | VBall Valve | 1" | 2 Way | 24 Cv | w/ Non-Spg | 24V | Floating | Belimo

Belimo | B2100VB-024+AMB24-3-X1

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B2100VB-024+AMB24-3-X1

VBall Valve | 1" | 2 Way | 24 Cv | w/ Non-Spg | 24V | Floating

Specifications

Item Number: B2100VB-024+AMB24-3-X1
Brand: Belimo
Control Input: Floating
Control Valves Type: VBall Valve
Cv / GPM: 24Â Cv
Spring Return: Non-Spring Return
Valve Size: 1" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Non fail-safe
Control Type: Floating/3-point
Degree of Protection: IP54 NEMA 2
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Holding): 0.5 W
Power Consumption (Running): 2.5 W
Running Time (Motor): 90 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 95
ANSI Class: 300
Controllable Flow Range: 75B0
Cv: 24
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 1" [25]

Documents and manuals

Belimo B2100VB-024+AMB24-3-X1 Documents

Datasheet Installation Instructions More Info
