B210+LF120-S US | CCV | 0.5" | 2 Way | 1.2 Cv | w/ Spg Rtn | 120V | On/Off | SW | Belimo

Belimo | B210+LF120-S US

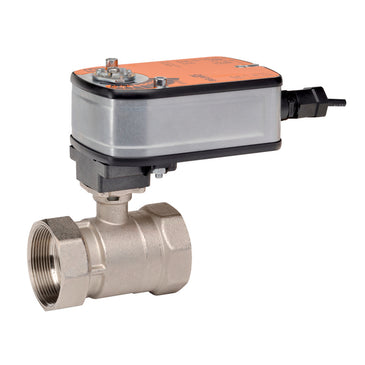

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B210+LF120-S US

CCV | 0.5" | 2 Way | 1.2 Cv | w/ Spg Rtn | 120V | On/Off | SW

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Item Number
B210+LF120-S US
Brand
Belimo
Control Input
On/Off
Control Valves Type
CCV
Cv / GPM
1.2 Cv
End Switch
Yes
Spring Return
Spring Return
Valve Size
0.5" - 2 Way
Voltage
120V
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
5.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 120 V
Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
1.2
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
