B209+TFRB24 | CCV | 0.5" | 2 Way | 0.8 Cv | w/ Spg Rtn | 24V | On/Off | Belimo
Characterized Control Valve (CCV), 1/2", 2-way, Cv 0.8 |Valve Actuator, Spring return, AC/DC 24 V, On/Off

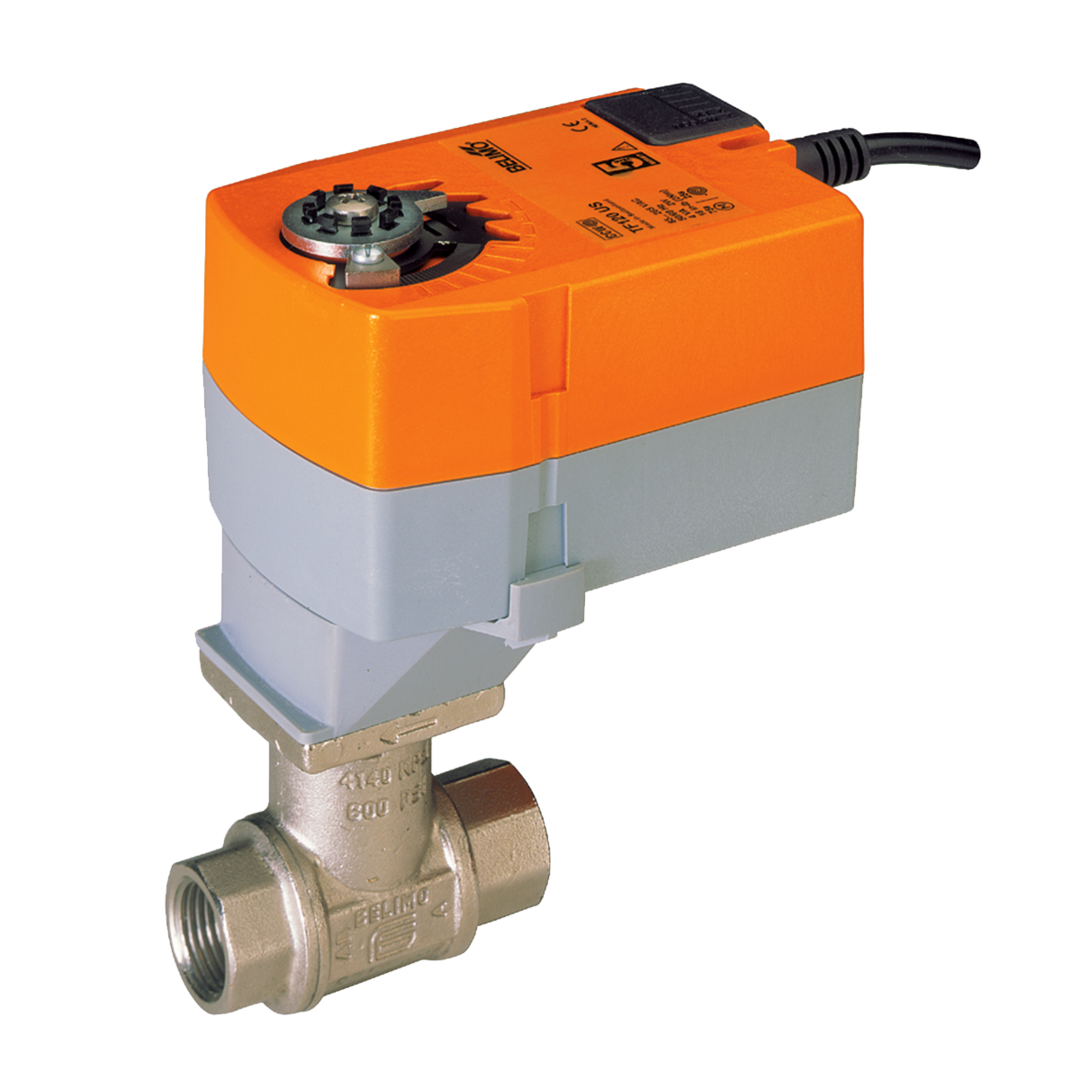

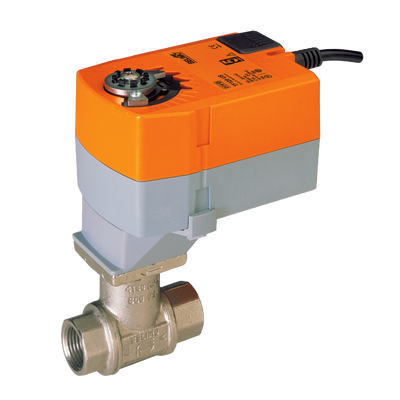

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B209+TFRB24
Documents and manuals
Belimo B209+TFRB24 Documents
Overview
Details for B209+TFRB24
CCV | 0.5" | 2 Way | 0.8 Cv | w/ Spg Rtn | 24V | On/Off
Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.
Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 75B0
- Cv
- 0.8
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Spring return
- Control Type
- On/Off
- Degree of Protection
- IP42 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1.3 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Fail-safe)
- <75 s
- Running Time (Motor)
- 75 s
- Voltage AC/DC
- AC/DC 24 V
