B207+NRX24-SR-T N4 | CCV | 0.5" | 2 Way | 0.3 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H | Belimo

Belimo | B207+NRX24-SR-T N4

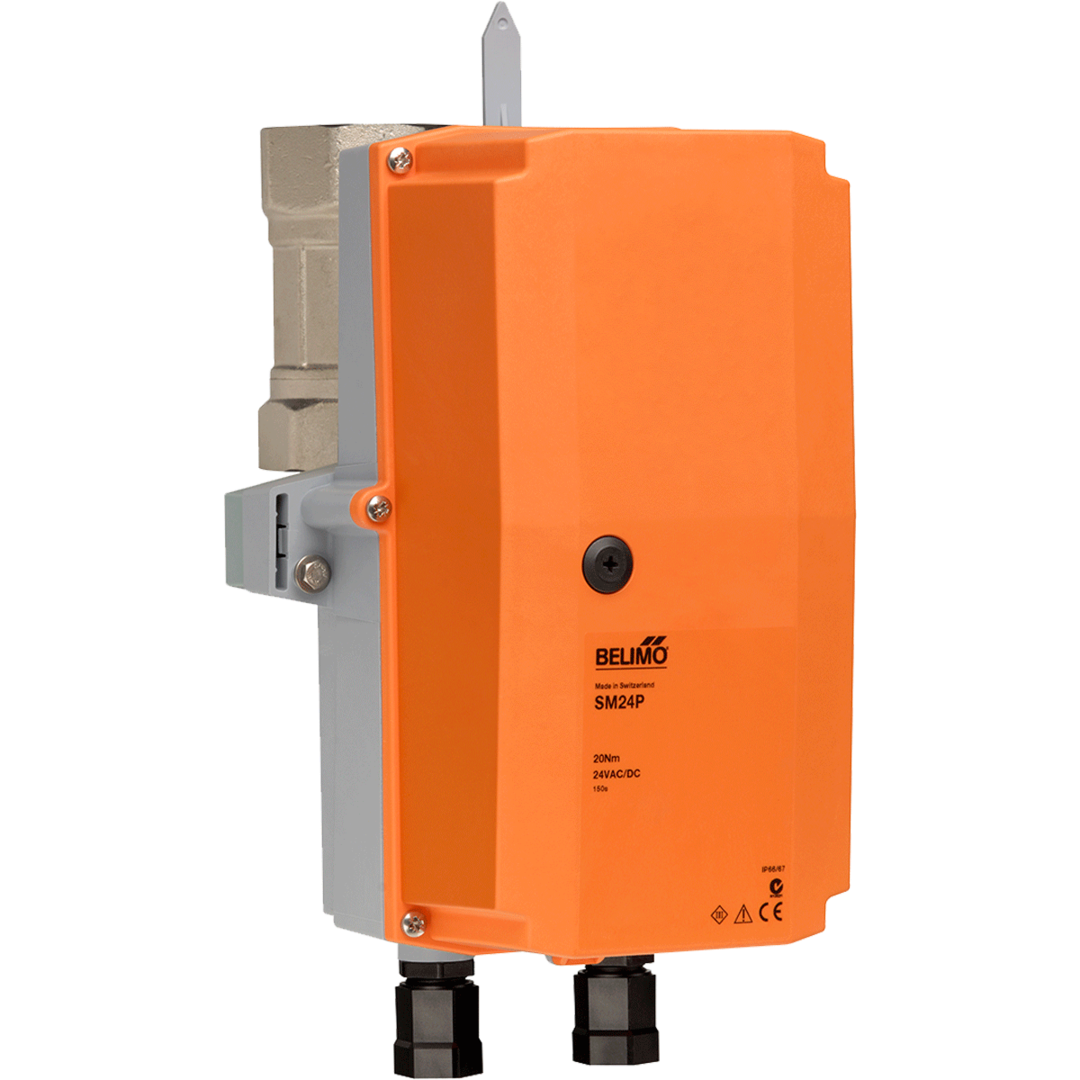

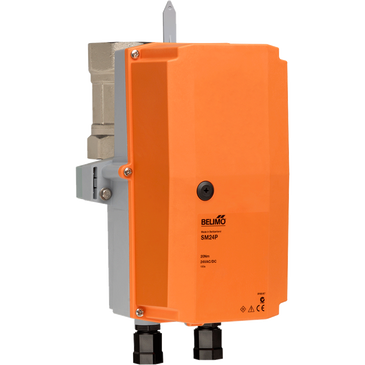

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for B207+NRX24-SR-T N4

CCV | 0.5" | 2 Way | 0.3 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H

Specifications

Item Number
B207+NRX24-SR-T N4
Brand
Belimo
Control Input
Modulating
Control Valves Type
CCV
Cv / GPM
0.3 Cv
Housing
NEMA 4H
Spring Return
Non-Spring Return
Valve Size
0.5" - 2 Way
Voltage
24V
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
0.6 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
0.3
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
