B207+LRB24-3 | CCV | 0.5" | 2 Way | 0.3 Cv | w/ Non-Spg | 24V | Floating | Belimo

Belimo | B207+LRB24-3

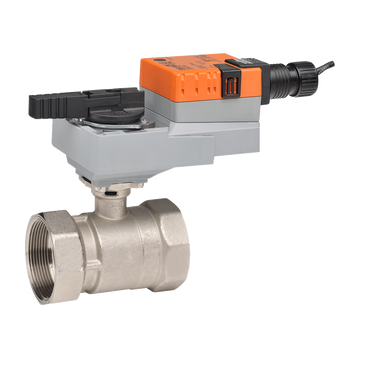

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B207+LRB24-3

CCV | 0.5" | 2 Way | 0.3 Cv | w/ Non-Spg | 24V | Floating

Specifications

Item Number: B207+LRB24-3
Brand: Belimo
Control Input: Floating
Control Valves Type: CCV
Cv / GPM: 0.3Â Cv
Spring Return: Non-Spring Return
Valve Size: 0.5" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Non fail-safe
Control Type: Floating/3-point
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Holding): 0.2 W
Power Consumption (Running): 1.5 W
Running Time (Motor): 90 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 0.3
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]

Documents and manuals

Belimo B207+LRB24-3 Documents

Datasheet Installation Instructions More Info
