B2050VSS-15+LMX24-3-X1 | Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Non-Spg | 24V | Floating | Belimo
Ball Valve (VSS), 1/2", 2-way, Cv 15 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

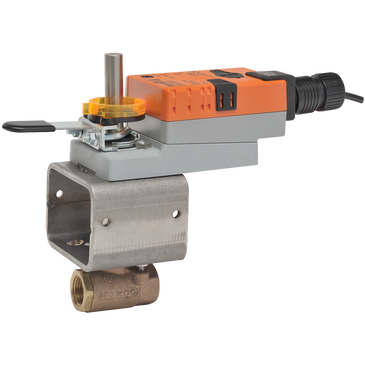

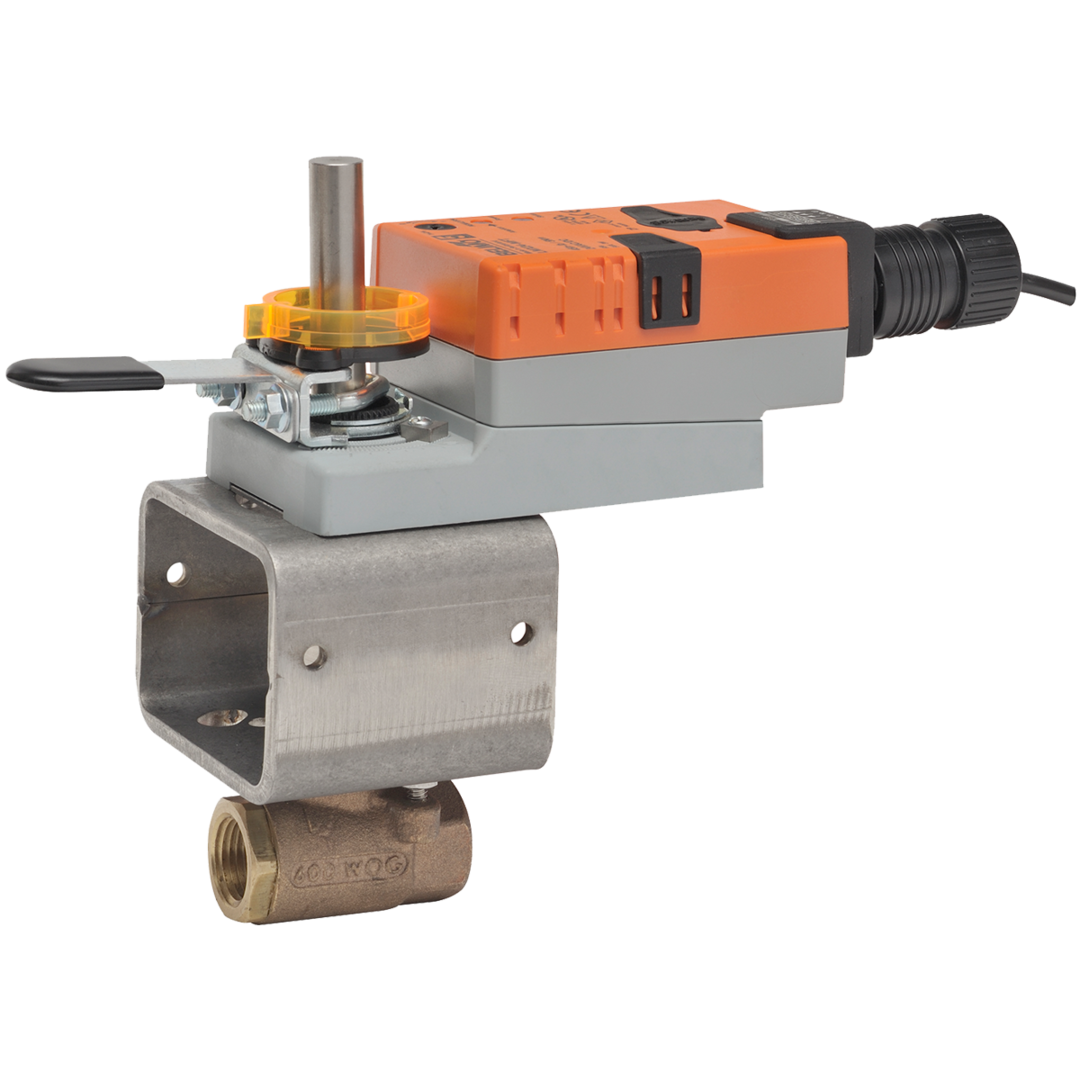

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B2050VSS-15+LMX24-3-X1
Overview
Details for B2050VSS-15+LMX24-3-X1
Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Non-Spg | 24V | Floating
Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 90B0 rotation A b AB open ccw B b AB open cw
- Cv
- 15
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.2 W
- Power Consumption (Running)
- 1.5 W
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
