B2050VSS-15+LF24 US | Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 24V | On/Off | Belimo

Belimo | B2050VSS-15+LF24 US

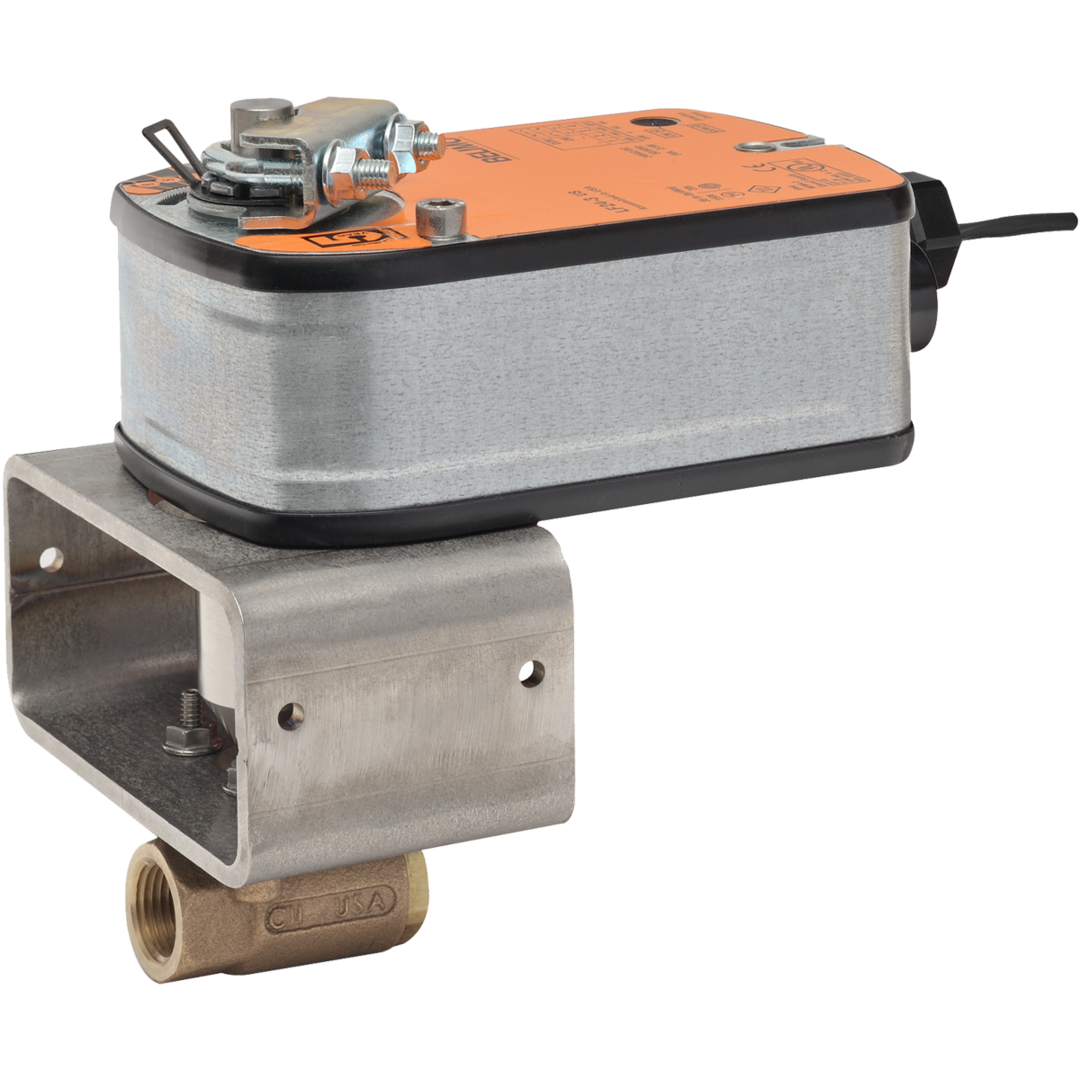

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Reviews

Overview

Details for B2050VSS-15+LF24 US

Ball Valve | 0.5" | 2 Way | 15 Cv | w/ Spg Rtn | 24V | On/Off

Specifications

Item Number: B2050VSS-15+LF24 US
Brand: Belimo
Control Input: On/Off
Control Valves Type: Ball Valve
Cv / GPM: 15Â Cv
Spring Return: Spring Return
Valve Size: 0.5" - 2 Way
Voltage: 24V
Actuator specifications
Actuator Type: Spring return
Degree of Protection: IP54 NEMA 2
Electrical Connection: cable
Power Consumption (Holding): 2.5 W
Power Consumption (Running): 5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC/DC 24 V

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 90B0 rotation A b AB open ccw B b AB open cw
Cv: 15
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]

Documents and manuals

Belimo B2050VSS-15+LF24 US Documents

Datasheet Installation Instructions More Info
