AMX24-SR-T N4 | Damper Actuator | 160 in-lb | Non-Spg Rtn | 24V | Modulating | NEMA 4 | Belimo

Configurable Damper Actuator, 180 in-lb [20 Nm], Non fail-safe, AC/DC 24 V, 2...10 V, NEMA 4X, terminals, modulating

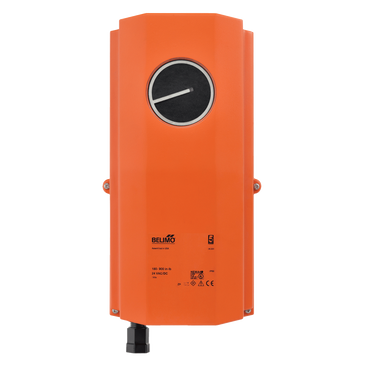

Belimo | AMX24-SR-T N4

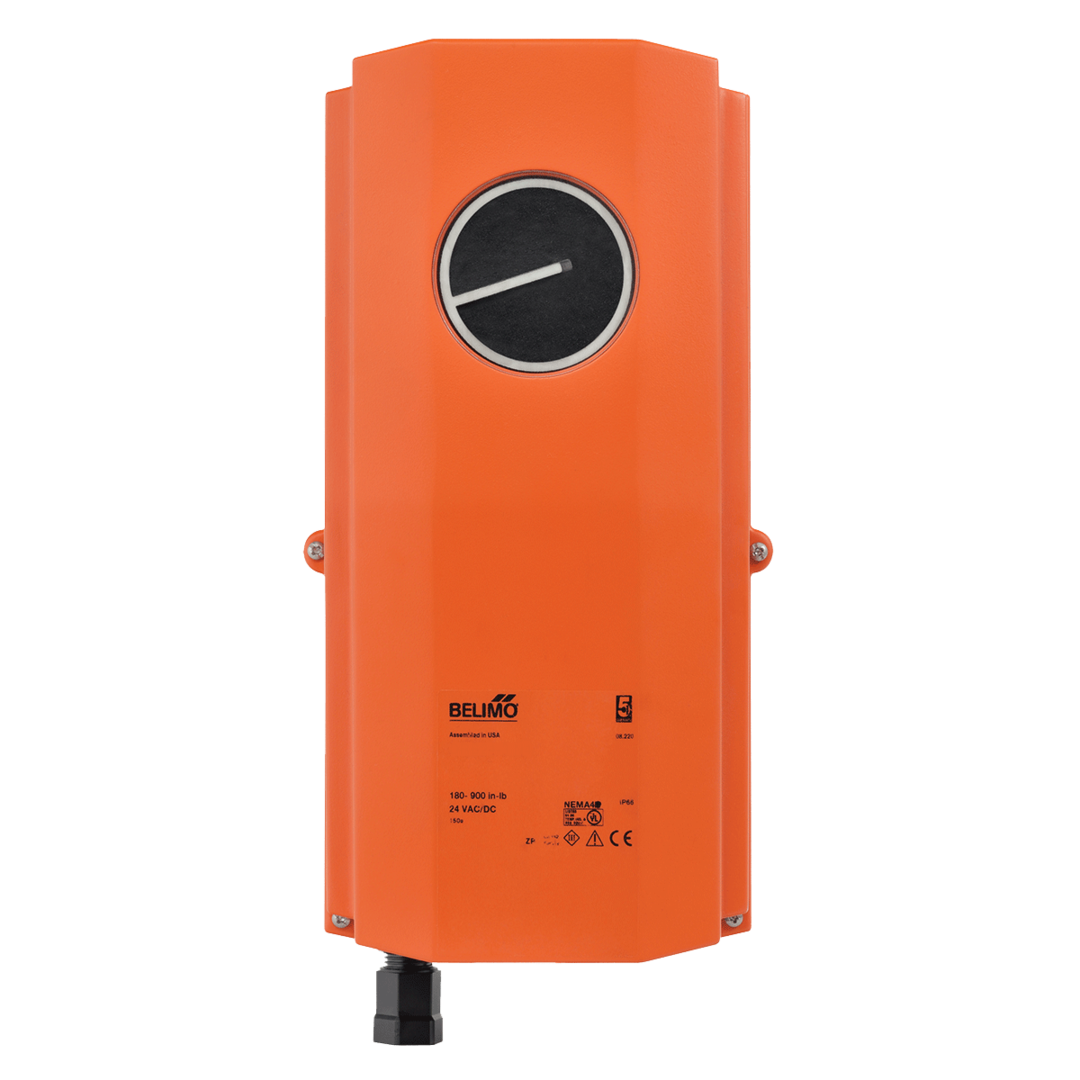

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AMX24-SR-T N4

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Belimo AMX24-SR-T N4 Documents

Datasheet Installation Instructions More Info

Overview

Details for AMX24-SR-T N4

Damper Actuator | 160 in-lb | Non-Spg Rtn | 24V | Modulating | NEMA 4

The thermostat senses the temperature in the actuator housing and switches the connected heating system on when the temperature falls below the one that has been set. This prevents the formation of condensation on assemblies and electronic components, even in the presence of frequent and severe temperature fluctuations. The heating elements is designed for continuous operation.

Specifications

Actuator Type: Non fail-safe
Angle of Rotation: 95
Control Type: DC 2...10 V
Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection: terminals
Manual Override: External push button
Power Consumption (Holding): 1.25 W
Power Consumption (Running): 3.5 W
Running Time (Motor): 90 s / 90B0
Running Time range (Motor): 90 or 150 s
Safety Function: NO
Torque: 180 in-lb [20 Nm]
Voltage AC/DC: AC/DC 24 V

Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. Pack of 1 | Blackhawk Supply

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $482.40 each

Belimo S2A Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. Pack of 1 | Blackhawk Supply

S2A | Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo $89.10 each

Belimo S1A Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. Pack of 1 | Blackhawk Supply

S1A | Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo $58.95 each

Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. Pack of 1 | Blackhawk Supply

ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo $26.85 each

Belimo ZS-100 Weather shield - galvaneal (13" L x 8" W x 6" D). | Blackhawk Supply

ZS-100 | Weather shield - galvaneal (13" L x 8" W x 6" D). | Belimo $107.55 each

Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. Pack of 1 | Blackhawk Supply

ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo $63.90 each
