AMQB24-MFT | Damper Actuator | 140 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

Belimo | AMQB24-MFT

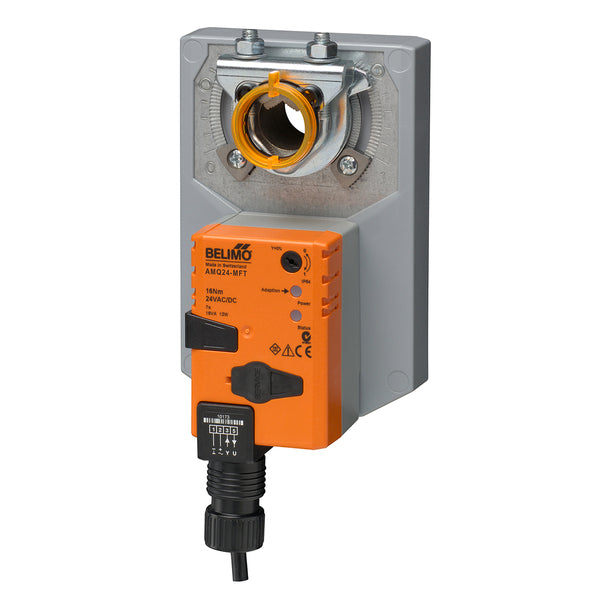

The photo is for representation purposes only and may not be a photo of product being purchased.


Details for AMQB24-MFT

Damper Actuator | 140 in-lb | Non-Spg Rtn | 24V | Modulating

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The default parameters for 2...10 V applications of the ..MFT actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.


Actuator Type
Non fail-safe
Angle of Rotation
Control Type
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
Manual Override
External push button
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
15 W
Running Time (Motor)
7 s / 90B0
Running Time range (Motor)
10 15 or 20 s
Safety Function
140 in-lb [16 Nm]
Voltage AC/DC
AC/DC 24 V
