AFX24-S | Damper Actuator | 180 in-lb | Spg Rtn | 24V | On/Off | Belimo

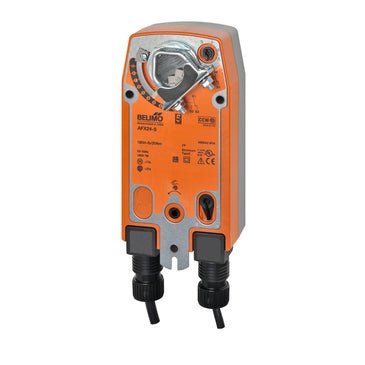

Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT

Belimo | AFX24-S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFX24-S
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFX24-S Documents

Datasheet Installation Instructions More Info

Overview

Details for AFX24-S

Damper Actuator | 180 in-lb | Spg Rtn | 24V | On/Off

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two AF's can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4" diameter shaft and parallel wiring.

Specifications

Actuator Type
Spring return
Angle of Rotation
95
Auxiliary Switches
2 x SPDT
Control Type
On/Off
Degree of Protection
852
Electrical Connection
cable
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Protection category
IP54
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC/DC 24 V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo KH-AFB AF/NF crankarm (with 3/4" diameter shaft pass through). | Blackhawk Supply
KH-AFB | AF/NF crankarm (with 3/4" diameter shaft pass through). | Belimo
$20.25 each
Belimo KG8 Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Blackhawk Supply
KG8 | Ball joint for 5/16" diameter rod | 90 | galvanized steel. | Belimo
$23.25 each
Belimo KH8 Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Blackhawk Supply
KH8 | Universal crank arm for KG8 or KG10A ball joint | 21/64" slot width. For damper shafts: 3/8" to 11/16" diameter or 3/8" to 9/16" square. | Belimo
$15.75 each
Belimo KG10A Ball joint for 3/8" diameter rod | zinc plated. | Blackhawk Supply
KG10A | Ball joint for 3/8" diameter rod | zinc plated. | Belimo
$26.85 each
